RAB FXLED150T

Share Print

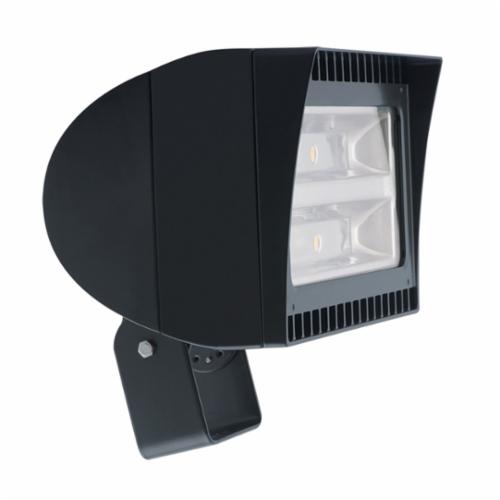

RAB FXLED150T Standard Floodlight Fixture With 120 to 277 VAC ON/OFF Driver, LED Lamp, 155 W Fixture, 120/208/240/277 VAC, Bronze Housing

  • MPN: FXLED150T

  • IESPN: 193165

  • UPC: 019813105123

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
RAB FXLED150T

RAB Floodlight Fixture, Standard, Series: FXLED, 120/208/240/277 VAC, 155 W Fixture, 1.31/0.8/0.69/0.6 A, LED Lamp, 150 W Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color, 65 CRI, Class 2 Constant Current Ballast, Specular Polycarbonate Reflector Lens, 14440 Lumens, NEMA 7H x 6V/IP66, Trunnion Mount, Die Cast Aluminum Housing, Bronze Housing, 9 in H x 14 in W x 9 in D

Type      Standard
Series      FXLED
Voltage Rating      120/208/240/277 VAC
Fixture Wattage      155 W
Amperage Rating      1.31/0.8/0.69/0.6 A
Lamp Type      LED
Lamp Wattage      150 W
Average Life      100000 hr
Light Color      Cool White
Color Temperature      5000 K
Color Rendering Index (CRI)      65
Ballast Type      Class 2 Constant Current
Lens Type      Specular Polycarbonate Reflector
Lumens      14440 Lumens
Enclosure Type      NEMA 7H x 6V/IP66
Mounting Type      Trunnion
Housing Material      Die Cast Aluminum
Housing Finish      Bronze
Dimensions      9 in H x 14 in W x 9 in D
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520585092666.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/RAB_FXLED150T_Specification_Sheet.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11274/ID-SPEC-FXLED150T.pdf
  • pdfSpecification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/RAB_FXLED105SF_Datasheet_1.pdf
  • videoTechnical Drawing https://www.iesbuy.com/IDW_DOCUMENT_1525163755883.png
  • videoTechnical Drawing https://www.ideadigitalcontent.com/files/11274/ID-DRW-v1-led_floodlight_150watt_trunnion_2.png
  • videoVideo Link https://youtu.be/hrUlD9zS7T4
  • pdfWarranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/RAB_B3A_Warranty.pdf
  • Ultra high output, high efficacy LED floodlight with wide NEMA type 6H x 6V beam spread
  • Patent pending airflow technology ensures long LED and driver lifespan
  • 66% energy cost savings vs HID
  • Air flow technology heat dissipation
  • 1.31 A at 120 VAC, 0.8 A at 208 VAC, 0.69 A at 240 VAC, 0.6 A at 277 VAC
  • Without photocell
