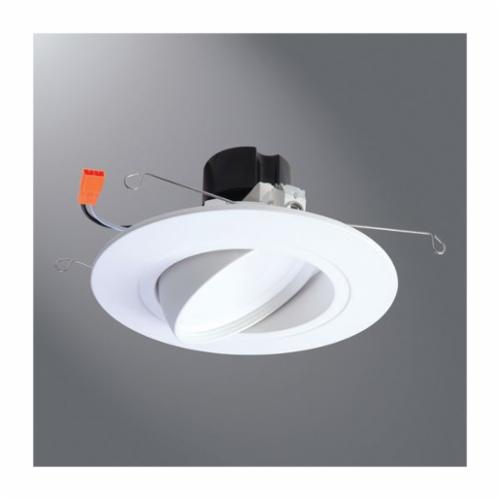

The Halo RA56 LED is a complete adjustable gimbal LED module for 5 and 6 in aperture recessed downlights; suitable for new construction, remodel and retrofit installation. The RA56 adjustable gimbal offers 35 deg tilt and up to 360 deg rotation. The RA56 is designed for use with 5 and 6 in housings including Halo H550, H750, H5 and H7 series and other compatible 5 and 6 in housings. The RA56 integral 120 VAC LED driver is designed for compatibility with leading edge and trailing edge phase control dimmers. The RA56 adjustable gimbals are offered in very wide flood (VWFL) and narrow flood (NFL) models.

Halo Retrofit Module, Adjustable Gimbal Narrow Very Wide Flood, Series: RA56, 120 VAC, 0.085 A, LED Lamp, 10 W Lamp, E26 Medium, 1 Lamps, 65 Lumens/W, 5 in, 6 in Ceiling Opening, RA56 Recessed Trim, 50000 hr Average Life, Warm White Light, 3000 K Color, 90 CRI, Polycarbonate Lens, 670 Lumens, Ceiling Mount, Die Cast Aluminum Housing, 6-1/2 in L x 6-1/4 in W x 6-3/4 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_89e3dcbcfe6cd0e6bd91615786e507735b33568a25be1202a0fcbee222120ffd.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_89e3dcbcfe6cd0e6bd91615786e507735b33568a25be1202a0fcbee222120ffd.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3ea2d254cc78a8878b037df2d6fa3a425e458f3c26d3dba9d0ea2972100f94cf.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3ea2d254cc78a8878b037df2d6fa3a425e458f3c26d3dba9d0ea2972100f94cf.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cc89f64f928778417ef00c403e3248c5fcededd46e44f27ea8005387ee4977eb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cc89f64f928778417ef00c403e3248c5fcededd46e44f27ea8005387ee4977eb.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5406c0f66a3cfff9d68250c585ab0aea7cbdf72c085dfb11c706f7f17d368d74.pdf

• Adjustable gimbal offers 35 deg tilt and up to 360 deg rotation
• Dimmable to 5% with select dimmers
• Flexible mounting with torsion springs or friction clips (included)
• Impact-resistant polycarbonate, high lumen transmission
