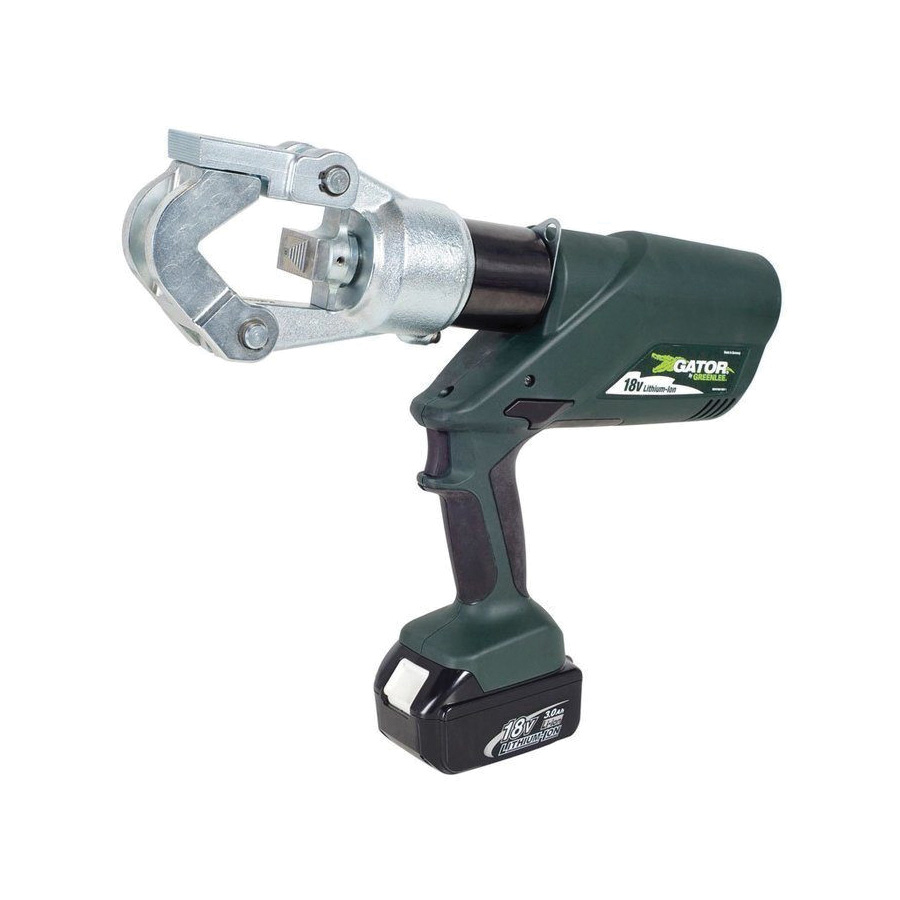

Greenlee® Gator® Battery Powered Crimp Tool, Cordless, Bare Tool, Series: EK12IDL, Crimping Capacity: 4 AWG to 1000 kcmil Cu, 6 AWG to 1000 kcmil Al, 12 ton Crimping Force, 18 V, Li-Ion Battery, 3 Ah Battery, Overmolded Tacky Grip, Trigger Control, 16-1/2 in Overall Length, 14-1/2 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Greenlee_EK12IDL11_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Greenlee_EK12IDL11_Manual.pdf

• Dieless indent style crimping head does not require interchangeable crimping dies
• Intelligent crimping system technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18 V lithium-ion (lithium-ion) battery provides 70% more cycles per charge and faster cycle times
• Automatic retraction stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• LED light provides the operator with the battery charge and tool maintenance status
• Two-stage hydraulic system provides fast advance and power speeds, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350 deg
• Tools automatically retract when the crimping cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee® battery powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Flip open crimping head will allow crimping of 4 AWG to 1000 kcmil copper or 6 AWG to 1000 kcmil aluminum with no dies to change
• Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger
