Universal GMX Electronic Series Time Controls are a low-cost alternative for applications that do not require more than 16 A. Unit can be mounted in a UL Type 1 indoor or 3R outdoor enclosure.

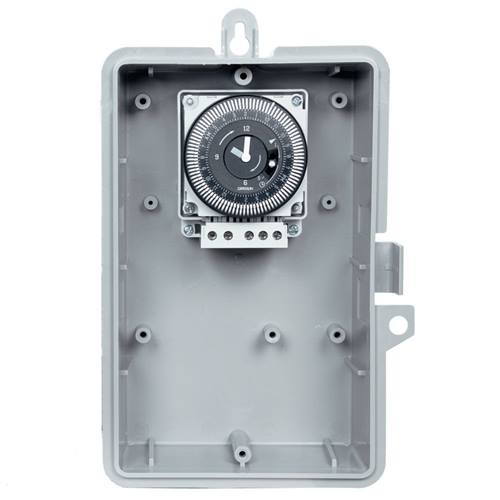

Intermatic® Grasslin® Electromechanical Time Switch, Series: GMX, 120 VAC, 21 A, 1 hp, 1 Pole, 1CO 1 Form C SPDT Contact Form, 15 min to 24 hr Time Setting, 24 hr Pulse, Screw Electrical Connections, NEMA 1 Enclosure, -4 to 131 deg F, Wall Mounting, 10 in H x 6-1/2 in W x 3-3/4 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8422600368419add7ea40fe0369f98ffbd9405933d8211d59a3ee67fc12cd325.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8422600368419add7ea40fe0369f98ffbd9405933d8211d59a3ee67fc12cd325.pdf

• Finger safe terminals
• Manual daylight saving time adjustment (D20/D50 models)
• Heavy duty relay contacts for switching low or line voltage loads
• Non-metallic enclosure provides space for field added contactor or other accessories
• Indoor enclosure
• Manual 3-way override
• Screw terminal connection
• 1 hp at 120 VAC, 2 hp at 240 VAC
• Manual override (on/auto off), captive trippers, easy-to-set true clock face, finger safe terminals, quartz drive with 7 day battery backup
• 1 hp at 120 VAC, 2 hp at 240 VAC motor power
