Recessed incandescent housing for 2x8 new construction rated IC and Non-IC. Approved for direct burial in insulation. Not for pulling wires. Airtight, aluminum housing with engineering-grade thermoplastic frame and junction box with four built-in ROMEX® clamps and ground wire. Pre-assembled poke-home connectors for ease of wiring. Rated for 90 deg C. Factory installed captive bar hangers that span up to 24 OC and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position.

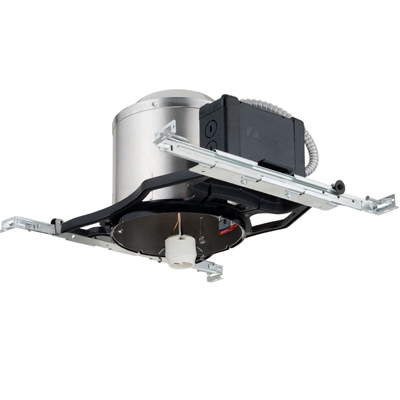

Lithonia Lighting®, LC6 R6, Recessed Lighting Housing, Round, Series: LC6, 120 VAC, 7-1/8 in Ceiling Opening, Incandescent Lamp, 1 Lamps, IC/Non-IC Insulation, Recessed/Wood Joist/T-Bar Mounting, For Use With: REALITY™ ENERGY STAR® (ESL) Open Narrow Flange LED Module/P Series Open and Baffle Wide Flange LED Modules, 6 in Diameter, 8-1/4 in Height, 22-3/4 in Width, 13 in Depth, Thermoplastic Housing Material, Black

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_50b5f82e2713d625cd724febdc490f373dbb63cf4f460f1349b9d52b016fd8c9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_50b5f82e2713d625cd724febdc490f373dbb63cf4f460f1349b9d52b016fd8c9.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• 100 CRI, 3000 K color temperature and 1100 lumens direct (95 to 100% down) light distribution
• Socket clips to top of housing to prevent paint overspray in socket screw shell
• Socket attaches to reflector to ensure proper and consistent lamp position
• Thermal protection provided against improper lamp usage
• Expandable bar hangers allow for off center mounting in wood joist or T-bar ceilings
• Round shape
• Airtight standard and tested to meet current energy codes
• Aluminum housing with engineering grade thermoplastic frame
• Galvanized bar hangers span up to 24 in o.c. and feature stepped shank nail and positioning guide with integral T-bar locks
• Two locking screws hold fixture in position
• Engineering-grade thermoplastic junction box (4) built-in Romex® clamps
• Pre-assembled poke home connectors for ease of wiring
• Durable medium base porcelain socket with nickel plated copper alloy screw shell and contact
• Recessed incandescent housings for 2 in x 8 in new construction rated IC and Non-IC
