Leviton® single pole detachable plugs are designed to provide superior service and durability, even under the most severe operating conditions. Featuring solid brass contacts and TPV insulators, these devices are ideal for use with equipment associated with concerts, sound stages, movie-making, television production and many other power distribution applications.

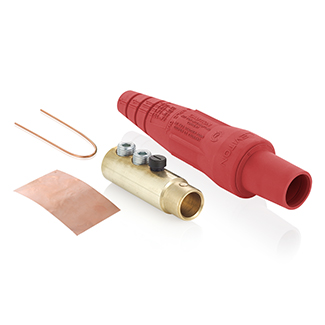

Leviton® Plug, Cam Type Detachable Taper Nose, Series: 16 Series, 600 VAC, 400 A, 1/0 to 4/0 AWG Wire, Female/Double Set Screw Connection, Brass Contact, Santoprene™ TPV Housing Material, NEMA 3R NEMA Rating, Specifications: 1-Pole, 1.72 in Dia, Red, 6.88 in L x 1.84 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97b58a9ad322aae2b4d25b030708ccd88880ca6acc113042168afacc424cf8a2.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97b58a9ad322aae2b4d25b030708ccd88880ca6acc113042168afacc424cf8a2.pdf

• Taper nose, cam type plug designed for commercial applications to provide superior service
• Self compensating for wear
• Insulated by shatter and crack-resistant Santoprene™ TPV making it ideal for both outdoor and indoor applications
• Color coded insulating sleeves provide fast and easy phase identification
• Self compensating for wear slit in male contact provides spring action for longer usage
• Quick connect/disconnect - twist and pull provided by double cam male and cam button in female
• High conductivity positive, vibration proof connection provided by cam design
• Copper wire strain-relief
• Locking and reinforcing ring won't melt, break or crack
• NEMA 3R rated (rainproof) for use outdoors
• 600 VAC voltage rating
