Leviton® single pole detachable plugs are designed to provide superior service and durability, even under the most severe operating conditions. Featuring solid brass contacts and high-performance TPV insulators, these devices are ideal for use with equipment associated with concerts, sound stages, moviemaking, television production and many other power distribution applications. When used in-line, the newly redesigned profile of the 16 Series insulators reduces the likelihood of plugs getting snagged on other cables and equipment. The solid plastic, non-conducting retaining screw provides strength and durability. The entire line of Leviton® 16 Series Single-Pole Detachable Plugs and accessories are completely interoperable and interchangeable with any competitive cam-type plugs and receptacles.

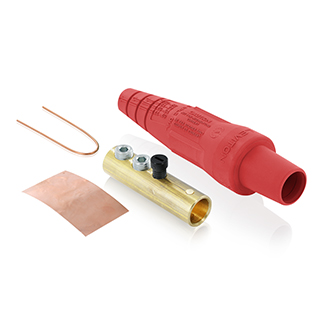

Rhino-Hide® Plug, Cam Type Detachable Female, Series: 16 Series, 600 VAC, 300 A, 2 to 2/0 AWG Wire, Double Set Screw Connection, Brass Contact, Santoprene™ TPV Housing Material, NEMA 3R NEMA Rating, Threaded Mounting, Specifications: 1-Pole, 86 deg F, Red, 6.88 in L x 1.84 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97b58a9ad322aae2b4d25b030708ccd88880ca6acc113042168afacc424cf8a2.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97b58a9ad322aae2b4d25b030708ccd88880ca6acc113042168afacc424cf8a2.pdf

• Color coded for easy phase identification
• High conductivity positive, vibration proof connection provided by double cam design
• Shatter and crack proof high durometer thermoplastic elastomer or neoprene rubber
• Self compensating for wear slit in male contact provides spring action for longer usage
• Hard thermoplastic screw provides strength and durability
• Intermateable with competitive cam type products and can be retrofitted to existing locations and power distribution systems
• Taper nose configuration
• Copper wire strain-relief
• Industrial grade plug
• NEMA 3R rated (rainproof) for use outdoors
