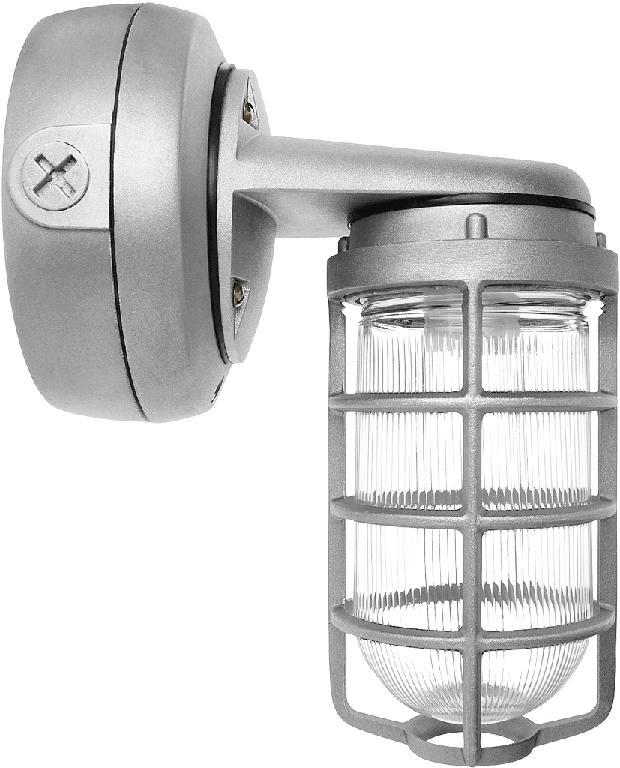

RAB Outdoor Vaporproof Light Fixture, HID, Series: VX Series, 120/208/240/277 VAC, 46 W Fixture, 0.38/0.3/0.2/0.17 A, CFL/Triple Tube Lamp, 42 W Lamp, 12000 hr Average Life, Electronic HPF Quad Tap Ballast, 3200 Lumens, Wall Mounting, Die Cast Aluminum Housing Material, Natural Housing Finish, 12-1/2 in H x 8-1/2 in W Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_VXBR2F42_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_VXBR2F42_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_HAZBLED42F-G_Warranty_Information.pdf

• All stainless steel hardware
• Close-up plugs allow Phillips or slotted screwdrivers for easy installation
• Weatherproof ballast box
• Ballast housing mounts to any junction box
• High temperature silicone internal gaskets
• Set screw keeps guard securely in-place
• Clear heat-resistant prismatic glass globes standard
• Without photocell
• Highly reflective white baked polyester epoxy powder finish over a heavy gauge aluminum base
• 0 deg F ballast minimum starting temperature
• Reflectors thread onto fixtures
• HID glazed porcelain 4 kV pulse rated with nickel plated screw shell and spring contacts
• 70 Lumens/W efficacy
• 91% efficiency
• 0.38 A at 120 VAC, 0.3 A at 208 VAC, 0.2 A at 240 VAC, 0.17 A at 277 VAC
