The Lev-Lok® modular wiring device system is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok® brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation. Available in extra heavy duty hospital and industrial grades and heavy duty commercial grade platforms.

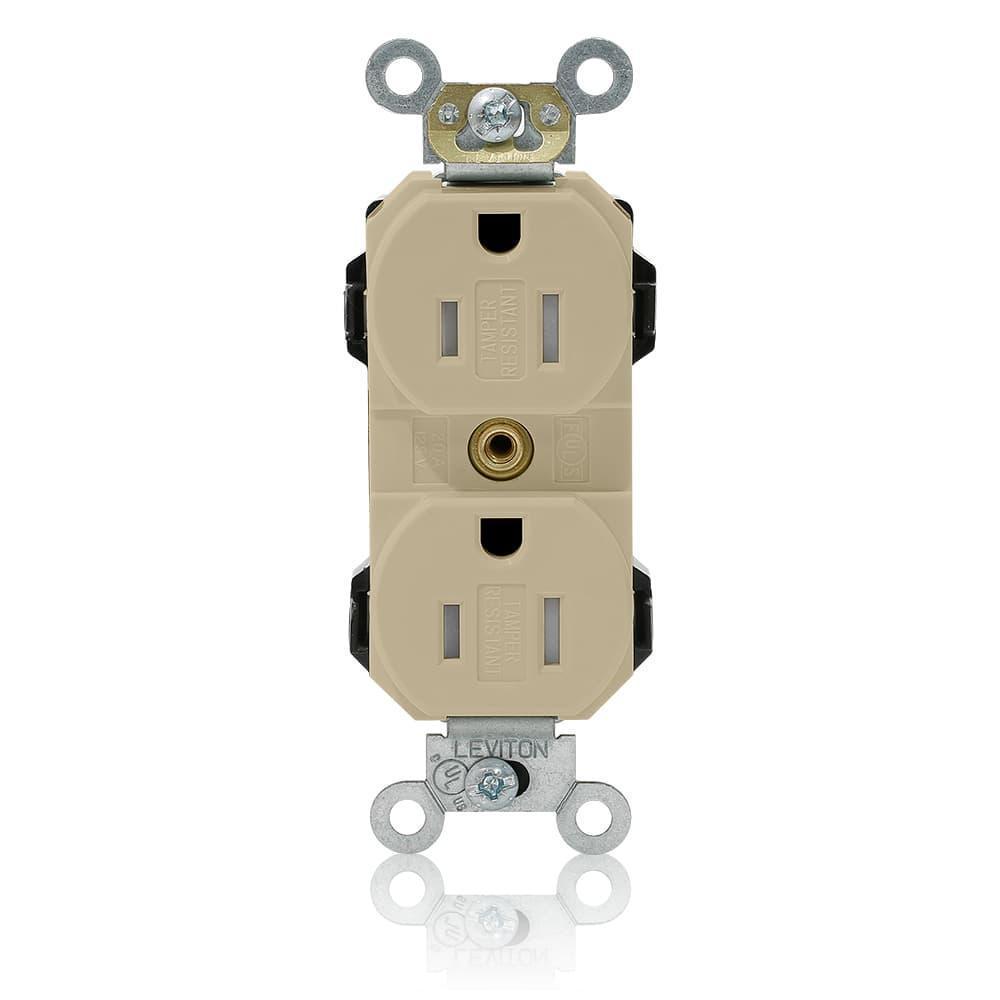

Leviton® Lev-Lok® Straight Blade Receptacle, 1-Phase Duplex Tamper Resistant, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, Ivory, 46 in H x 1.53 in W x 1.36 in D

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5842-I_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5842-I_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2708802564ebfbefa48a38fcda861eba60b497ab6098ab3400147fb1e4f9cb65.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2708802564ebfbefa48a38fcda861eba60b497ab6098ab3400147fb1e4f9cb65.pdf
• VIDEO LINK https://www.youtube.com/embed/Ve1u-Od7xR8

• Constructed with impact resistant thermoplastic nylon cover and body
• Four corner latches securely fasten the receptacles face to the body
• Large triple wipe, brass T line contacts for superior contact and conductivity
• 12 AWG THHN wire leads, 6 in L on MSTWL series wiring modules
• Galvanized steel, wrap around mounting strap with riveted ground contacts
• Grounding clip permanently secured to strap for easy, simple and secure installation
• Wiring module locks and latches to the receptacle body providing double the connection security
• Receptacle to be installed only with Leviton® MSTWL series wiring modules
• MSTWL wiring module shipped separately with protective label and factory installed circuit ID label
