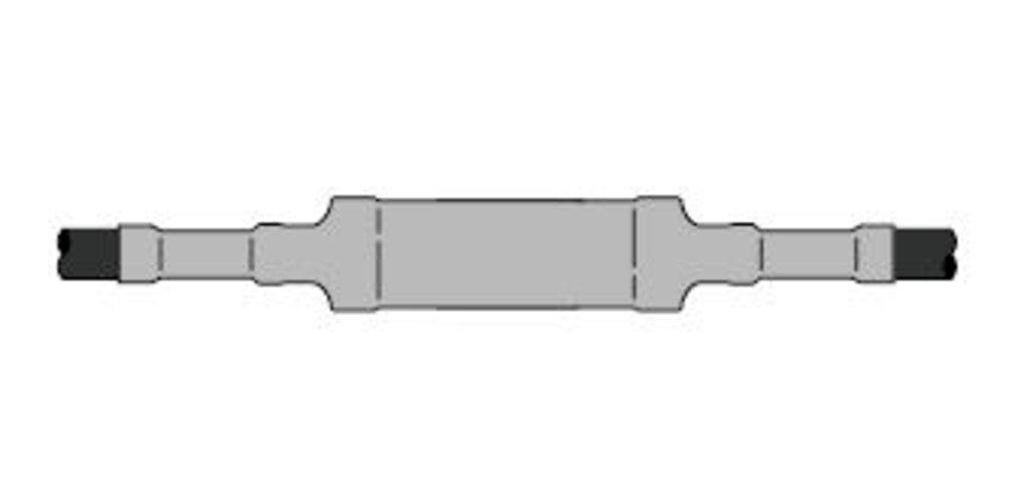

The 3M™ Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design sized to fit Type MV-90 or Type MV-105 cables with copper, or aluminum conductor sizes ranging from 2 AWG-1000 kcmil (35-500 mm²).

3M™, 7100002401, Splice Kit, Cold Shrink In-Line, Series: QS-III 5515A, 15 kV, Longitudinally Corrugated/Tape Shield/UniShield®/Wire Shield Cable, 500 kcmil Conductor, 1.04 to 1.7 in OD Insulation, 32 in Splice Length, 1 Conductors, 10014 Connector, 105 to 140 deg C, EPDM/Silicone Rubber, Black, 3 in Dia Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_162450a61dc93e4d403f49c2edf948a09a54ef3ccddf6f115b4e5e384503a18f.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_162450a61dc93e4d403f49c2edf948a09a54ef3ccddf6f115b4e5e384503a18f.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c776aa31cb8e572c56811b85cd1dd7773c52980ca16bb503744ba2dc2049b9c8.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c776aa31cb8e572c56811b85cd1dd7773c52980ca16bb503744ba2dc2049b9c8.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_82b206a46dcd91bb9ca4bccb522b8290666145e5f0e5aa2791af45746ad7e2c2.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_82b206a46dcd91bb9ca4bccb522b8290666145e5f0e5aa2791af45746ad7e2c2.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6c248a4c89f395c15e37ab52e74ee8444f5349323e5b2bc996224b3ac409eee2.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6c248a4c89f395c15e37ab52e74ee8444f5349323e5b2bc996224b3ac409eee2.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2c5392fe348fa54ea564d512a753587c929f2acd3f2e8d93813779f251ea7d0e.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2c5392fe348fa54ea564d512a753587c929f2acd3f2e8d93813779f251ea7d0e.pdf

• Designed for feeder and distribution circuits, it transitions from shielded to neutral power cables and fits type mv-90 cables
• Factory tested partial discharge and ac ensure reliability
• 1090 psi tensile strength
• 610% elongation
• 370 v/mil dielectric strength
• Special electrode design of the kit reduces the electrical stress at a critical cable/splice interface
• Silicon rubber-splice body provides good high and low temperature performance, and the EPDM rubber jacket offers physical protection
• Rated for 15 kV class cables
