3M™ 7100009589

Share Print

3M™ 7100009589 85 Series 4-Way Multi-Mold Resin Splice Kit, 1 kV, 7/16 in Dia Cable, 4 AWG, 8 AWG Conductor, 5 in L Splice, Resin

  • MPN: 7100009589

  • IESPN: 181487

  • UPC: 054007118466

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: 1/KIT

    • Availability: loading

    • Branch Availability
3M™ 7100009589

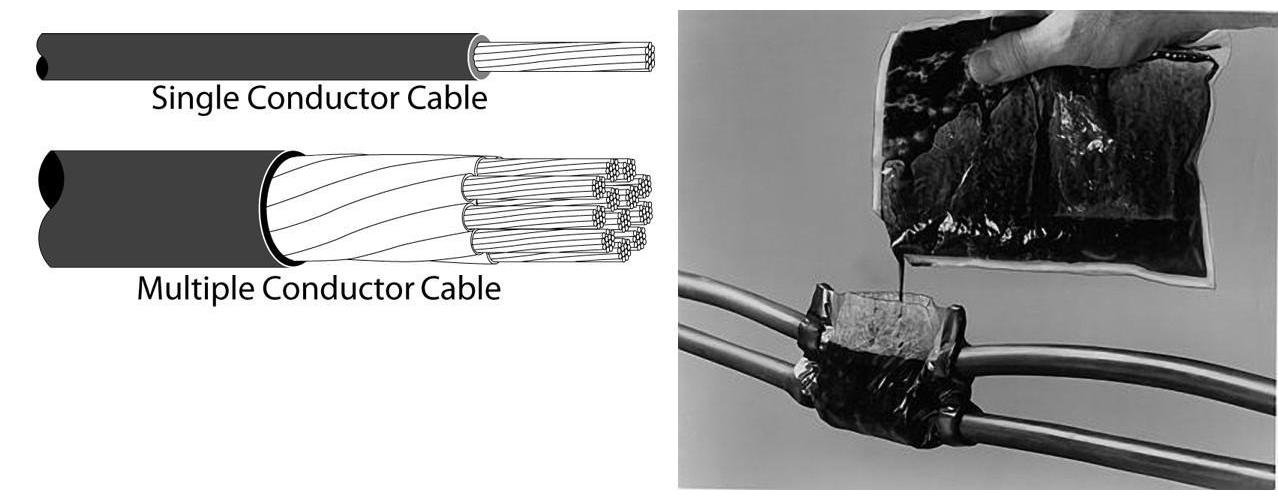

3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts. Splices may be inline, wye, X, butt and dead-end splice configurations (for non-shielded cable) using split bolts, H tap or C tap compression connectors.

3M™, 7100009589, Splice Kit, 4-Way Multi-Mold Resin, Series: 85 Series, 1 kV, Non-Shielded Cable, 7/16 in Diameter Cable, 4 AWG, 8 AWG Conductor, 5 in Splice Length, Split Bolt H Tap or C Compression Connector, 90 to 130 deg C, Resin, Green

Type      4-Way Multi-Mold Resin
Series      85 Series
Voltage Rating      1 kV
Cable Type      Non-Shielded
Cable Diameter      7/16 in
Conductor Size      4 AWG, 8 AWG
Splice Length      5 in
Connector Type      Split Bolt H Tap or C Compression
Temperature Rating      90 to 130 deg C
Material      Resin
Color      Green
  • Versatility designed into each kit accommodates a wide-range of cable size
  • No special tools required, electrically insulates odd sized and odd shaped splices on cables

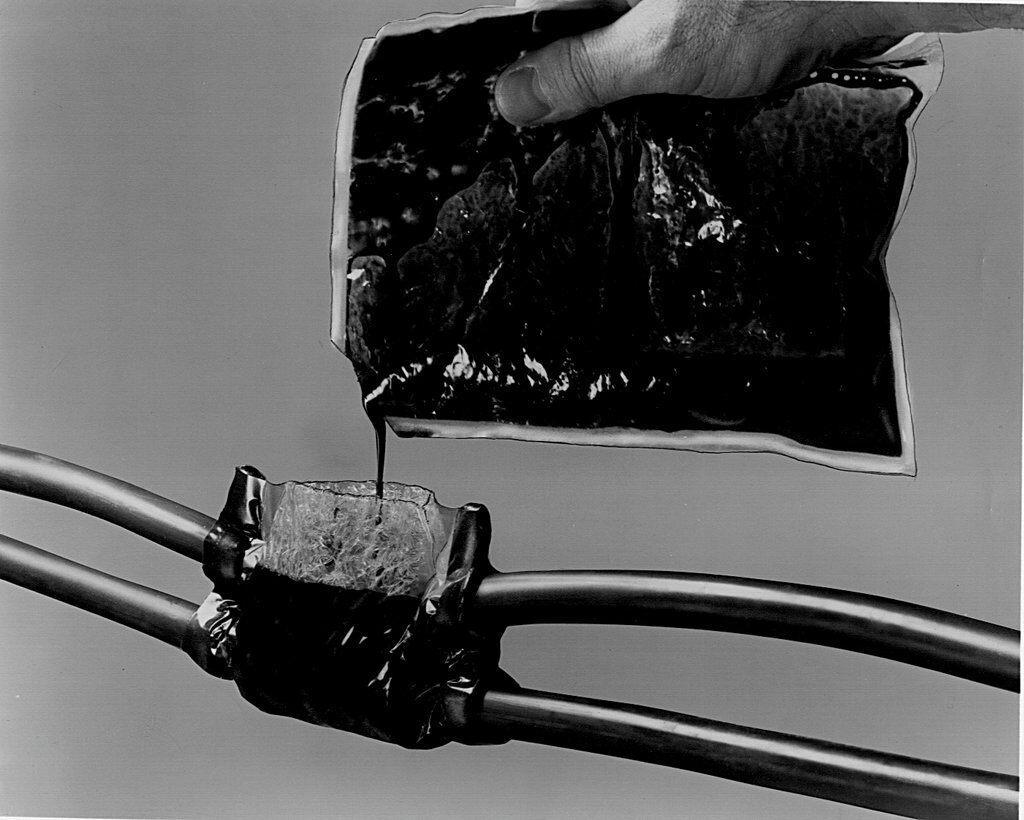

  • Pliable plastic molds are formed around splices
  • 444 psi tensile strength
  • 98% elongation
  • 524 v/mil dielectric strength
