3M™ 7100007452

Share Print

3M™ 7100007452 72-N Non-Re-Enterable Resin Splice Kit, 1 kV, 5/8 to 1-1/2 in Dia Cable, 22 AWG Conductor, 15.438 in L Splice

  • MPN: 7100007452

  • IESPN: 82914

  • UPC: 054007106272

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: 1/KIT

    • Availability: loading

    • Branch Availability
3M™ 7100007452

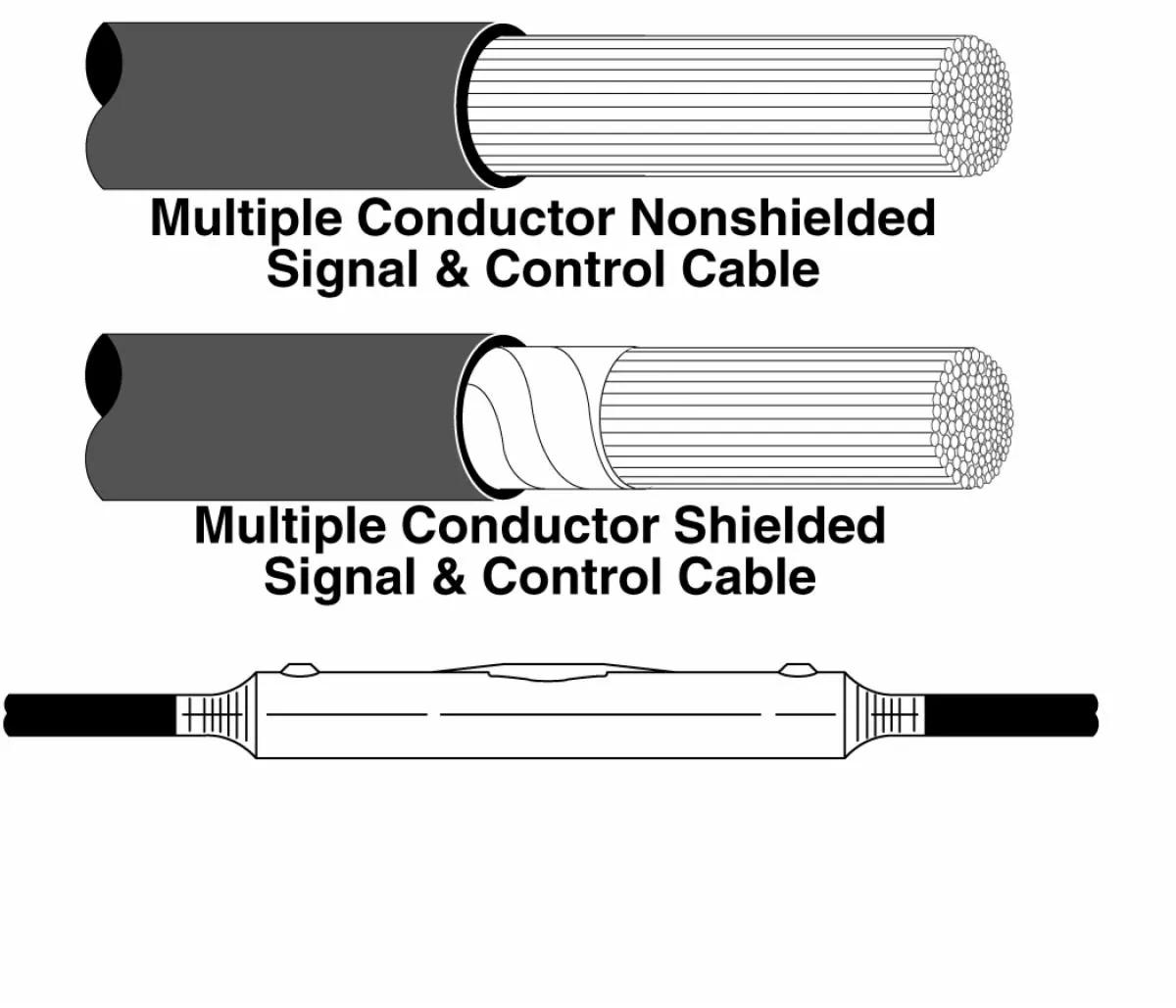

3M™ Scotchcast™ 72 N Series Inline Splice Kit is a 1 kV rated, rigid body splice designed to join signal and control cables. It fits shielded or unshielded constructions of plastic or rubber jacketed cables. It is perfect for inline splicing of shielded or unshielded cables, underground systems, joining of cable reel ends, direct burial applications, repair of cable failures and dig ins.

3M™, 7100007452, Splice Kit, Non-Re-Enterable Resin, Series: 72-N, 1 kV, Control/Non-Shielded/Shielded Cable, 5/8 to 1-1/2 in Diameter Cable, 22 AWG Conductor, 5/8 to 1-1/2 in OD Insulation, 15.438 in Splice Length, In-Line Connector, 90 to 130 deg C, 2-1/2 in Dia Dimensions

Type      Non-Re-Enterable Resin
Series      72-N
Voltage Rating      1 kV
Cable Type      Control/Non-Shielded/Shielded
Cable Diameter      5/8 to 1-1/2 in
Conductor Size      22 AWG
Insulation Size      5/8 to 1-1/2 in OD
Splice Length      15.438 in
Connector Type      In-Line
Temperature Rating      90 to 130 deg C
Dimensions      2-1/2 in Dia
  • RoHS 2011/65/EU Compliant
