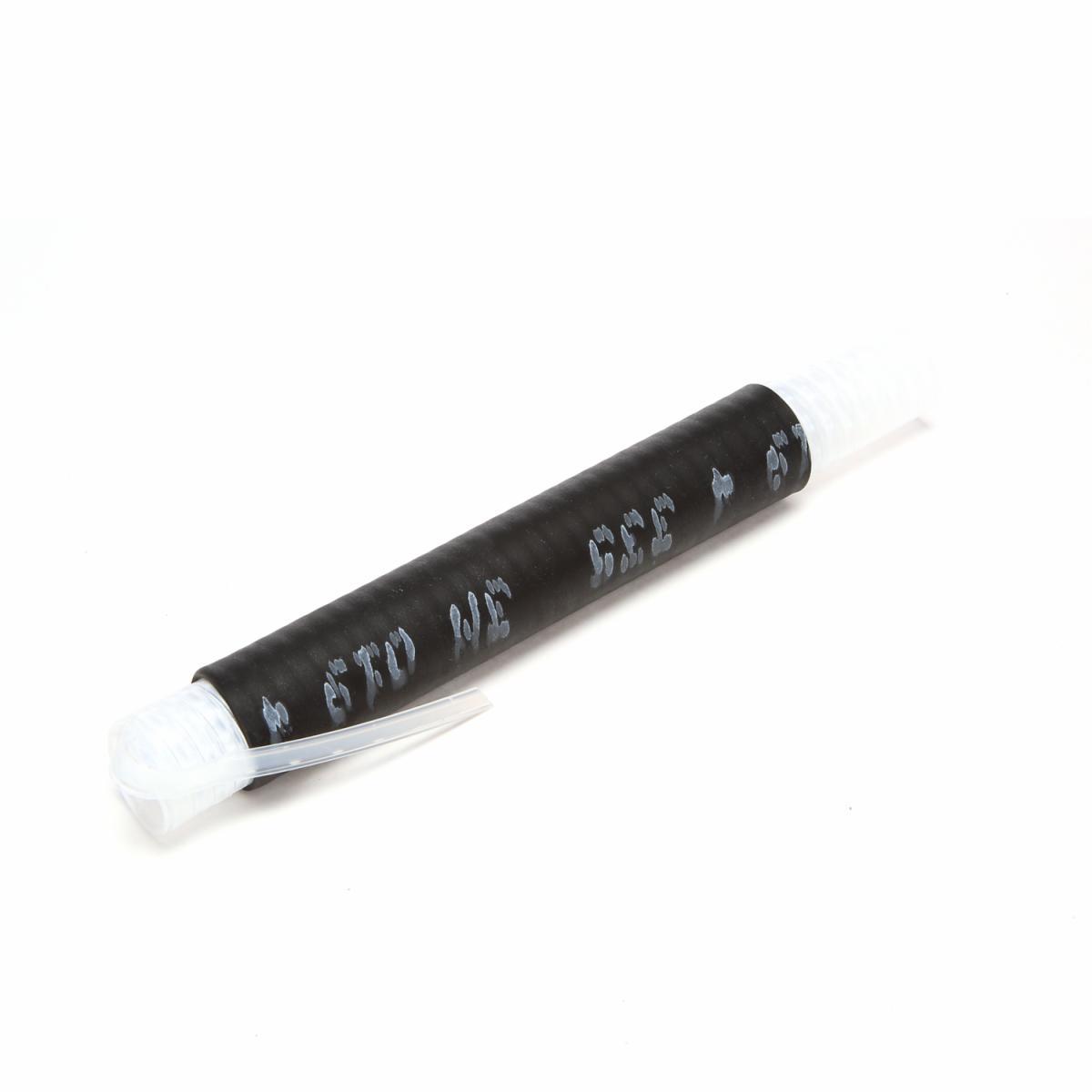

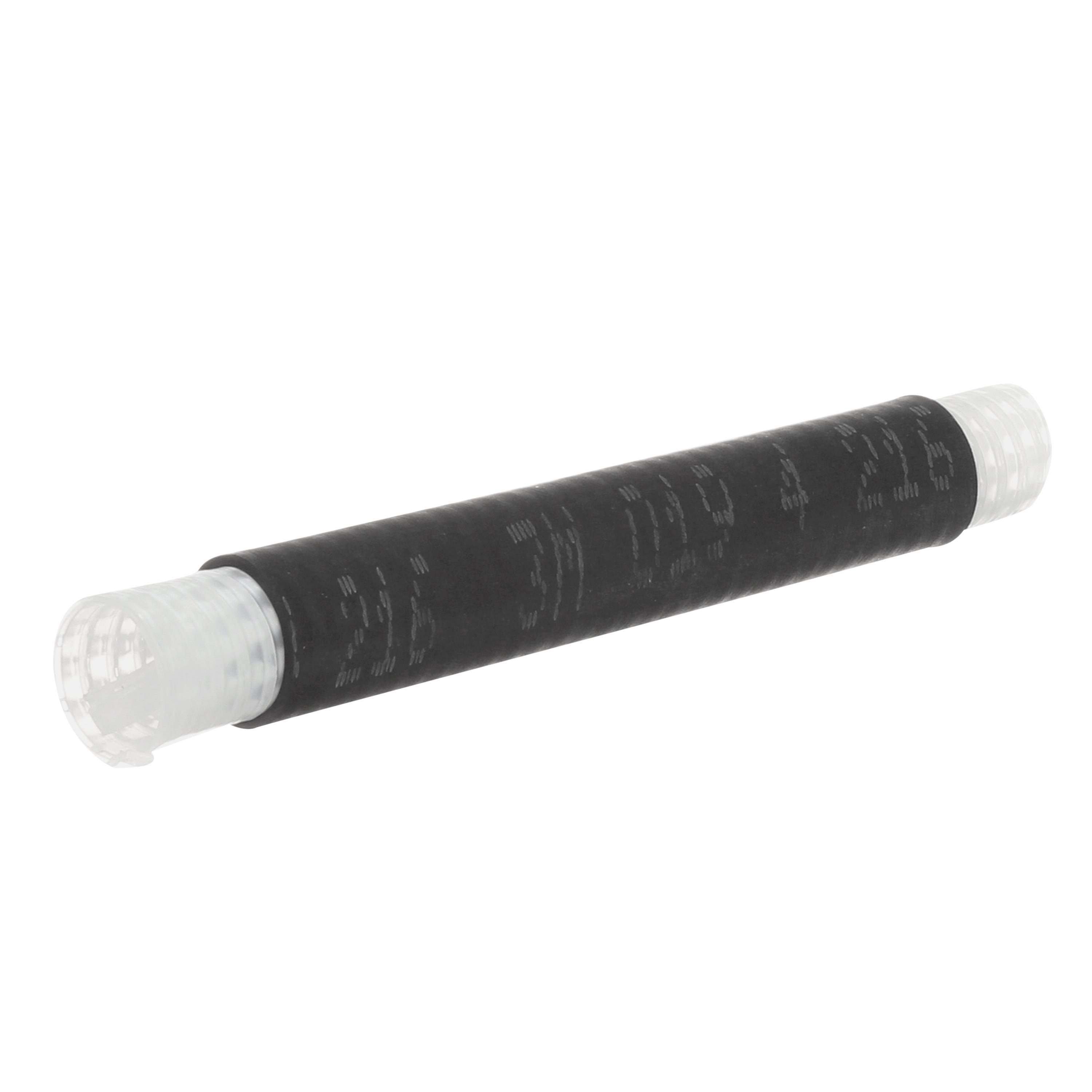

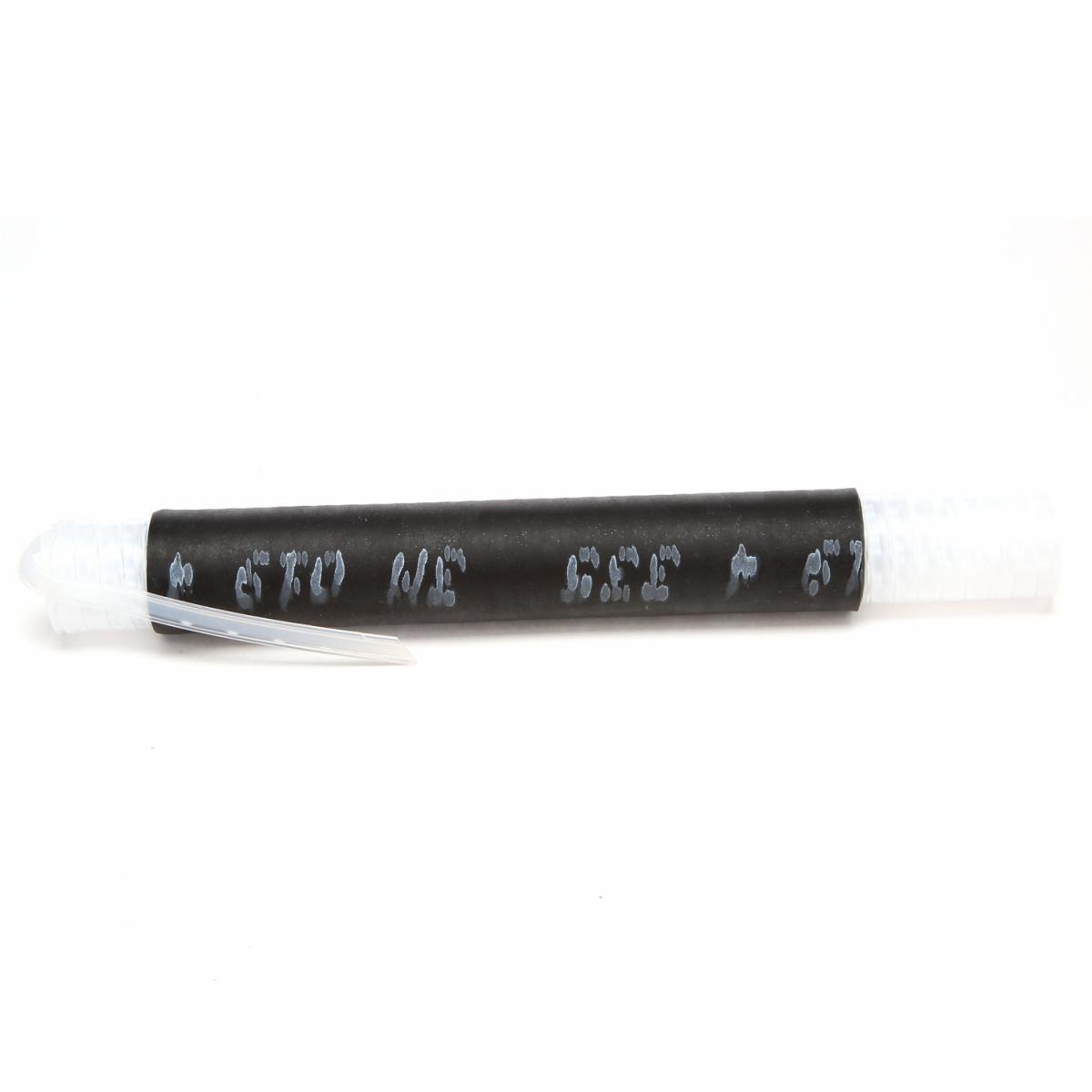

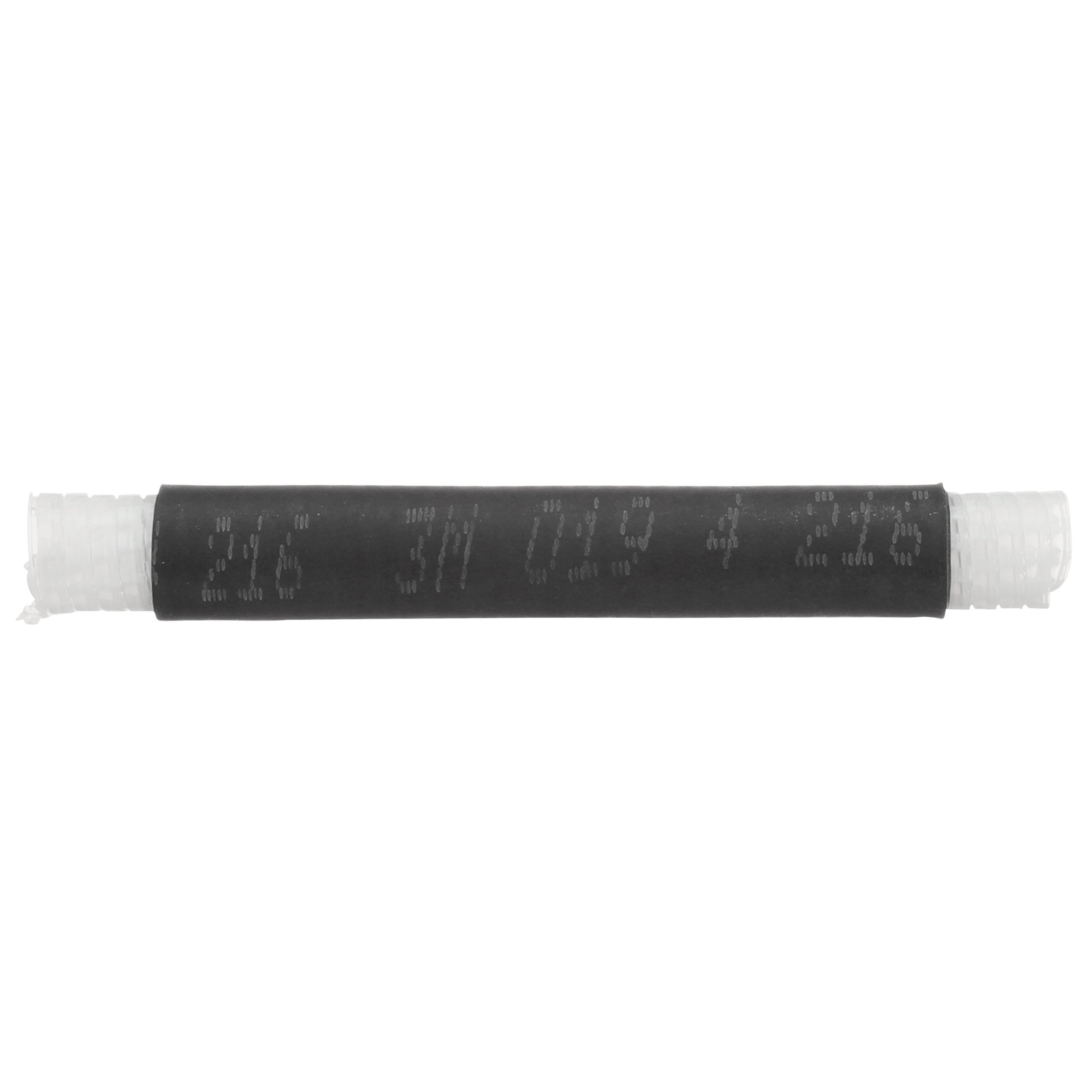

3M™ Cold Shrink Connector Insulators 8420 and 8430 Series are EPDM tubes designed using a unique Cold Shrink delivery system. Products are supplied pre-stretched on a removable core for efficiency and easy of installation. Removal of the core (unwind) after positioning allows the tube to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated material ensures a permanent, durable environmental seal and insulation.

3M™, 7100164587, Insulator, Cold Shrink, Series: 8420, 0.31 in Diameter Minimum, 0.56 in Diameter Maximum, 2 in Length, 1400 psi Tensile Strength, Elongation: 7.5, 365 V/mil Dielectric Strength, EPDM Rubber Insulation, Black

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_054007_42864_SDS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_054007_42864_SDS.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_488b9f8e0da05715ee0459eb0f04af2eb14a42f4492db1301bb1aebb5a47fd6c.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_488b9f8e0da05715ee0459eb0f04af2eb14a42f4492db1301bb1aebb5a47fd6c.pdf

• Low voltage single conductor insulated cable
• 1 kV voltage rating
• Accommodates a wide-range of cable sizes
• No torches or heat required
• Good thermal stability
• Seals tight, retains its resiliency and pressure even after prolonged years of aging and exposure
• Excellent wet electrical properties
• Tough rubber formulation withstands backfilling
• Water-resistant
• Resists acids, alkali and ozone
• -40 deg f to 194 deg f (-40 deg c to 90 deg c) operating temperature range
• 6 to 4 awg conductor size
• Polyolefin foam, copper conductor
• Simple installation which requires no tools
• Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
• Environmental sealing for communication and other non-electrical applications
• Made of EPDM rubber which contains no chlorides or sulfur
