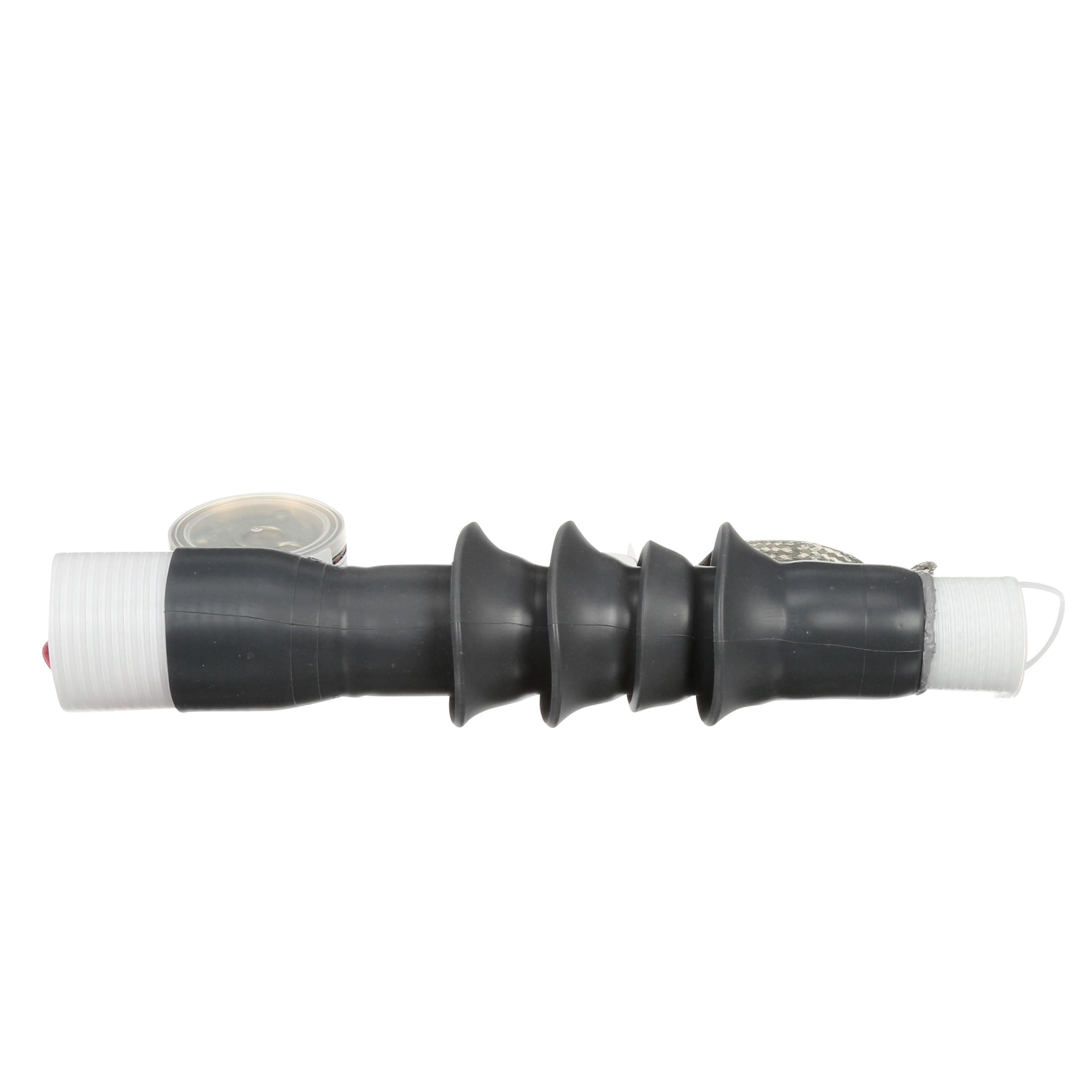

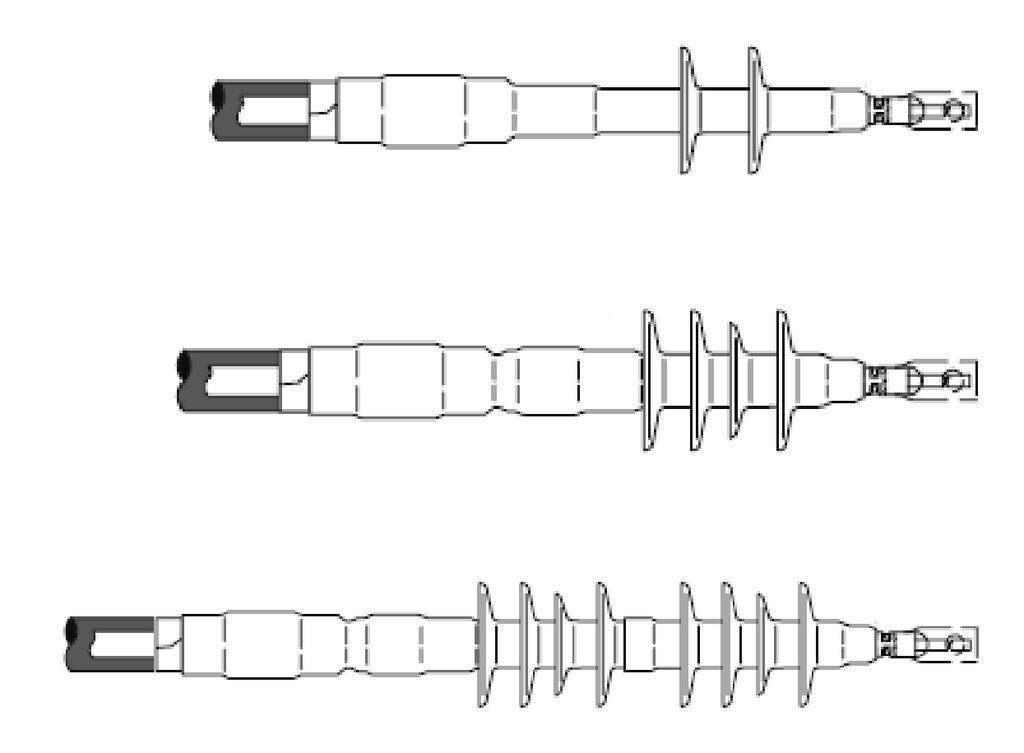

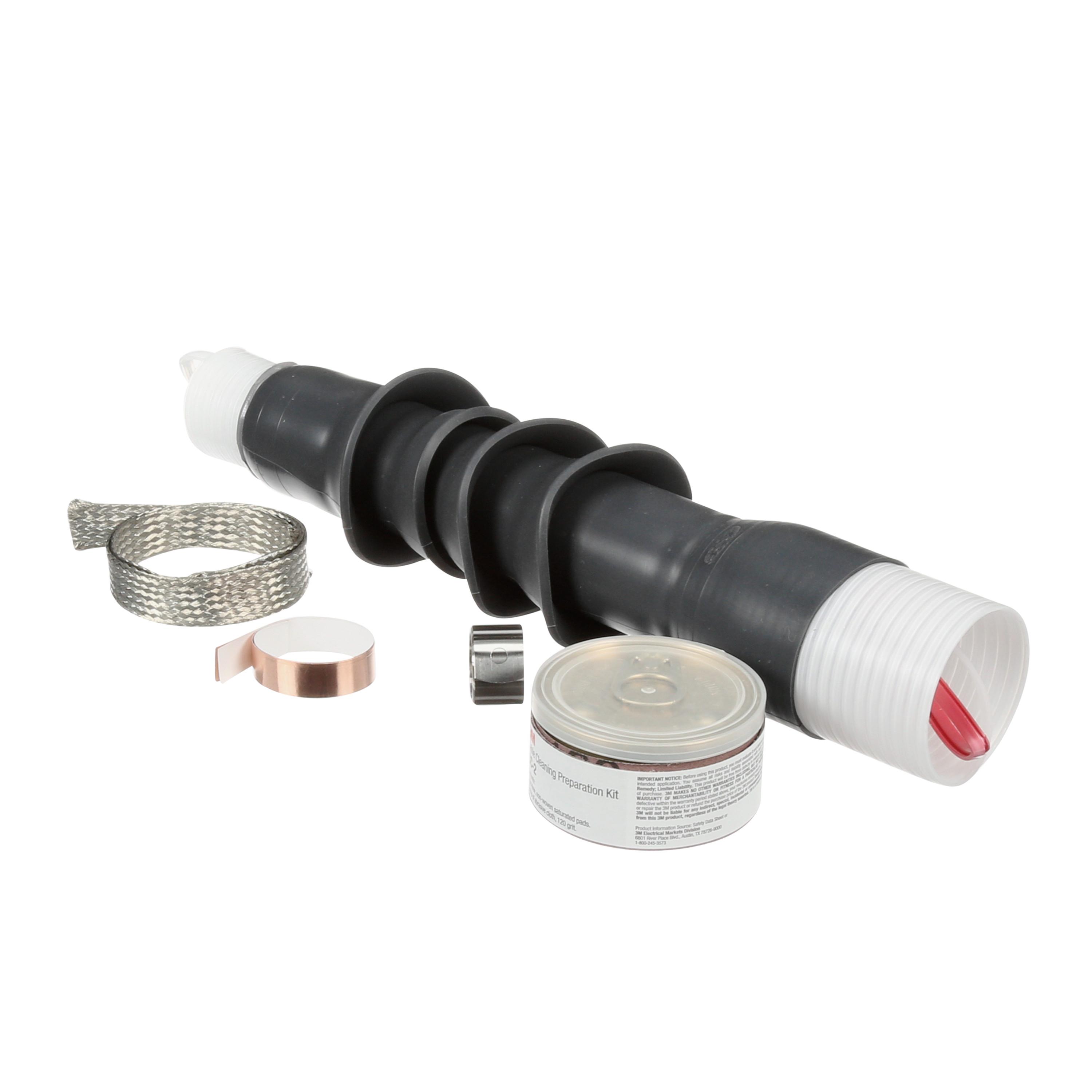

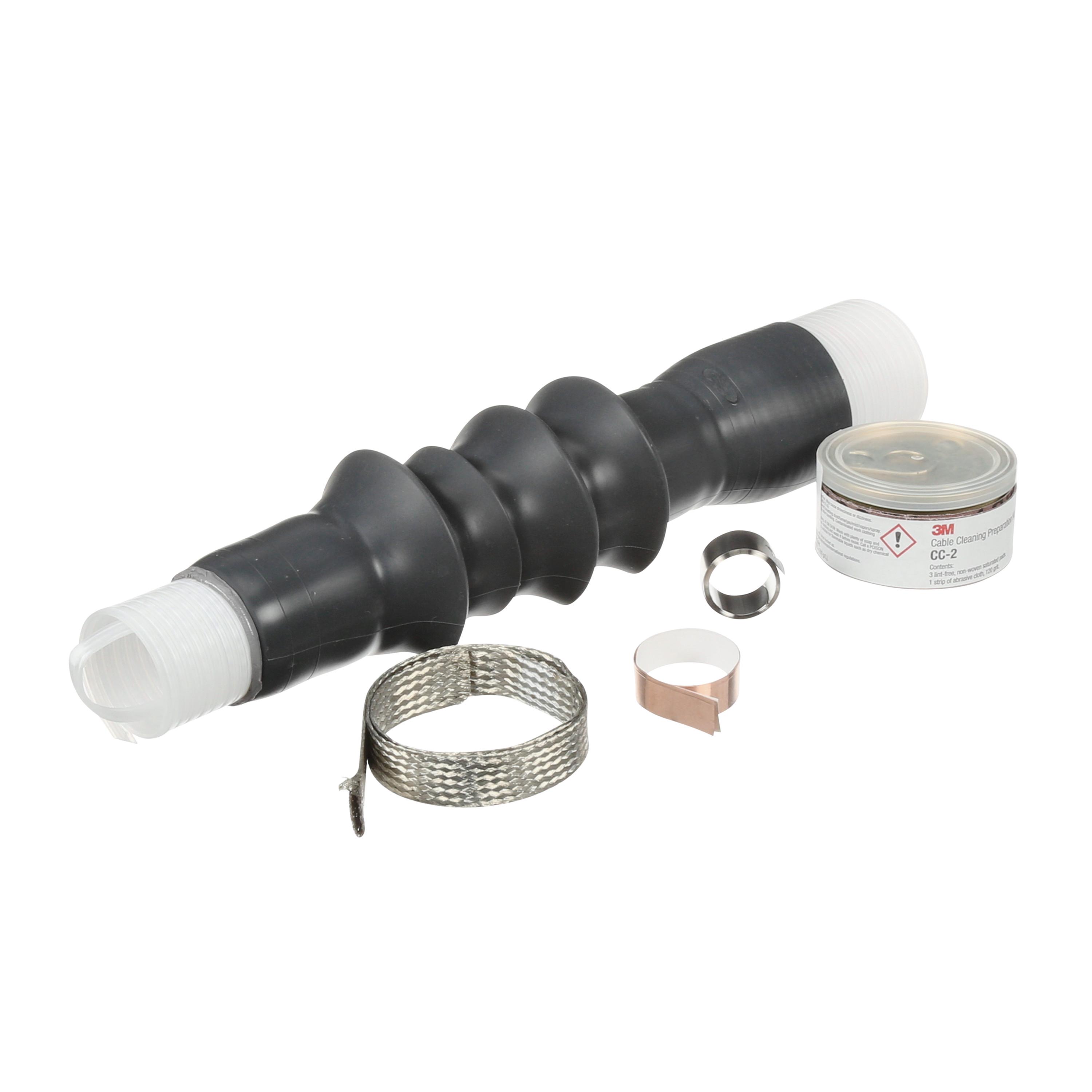

3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.

3M™, 7000031602, Cold Shrink Termination Kit, Series: QT-III 7690-S, Specifications: 1-Terminal, 5 to 25/28 kV Voltage, 2 AWG to 500 kcmil Conductor, 150 kV BIL Rated, 0.72 to 1.29 in OD Cable Insulation, 12-1/4 in L Max Installed, 1 Piece, For Use With: Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, Black

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7100164676_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7100164676_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7000031602_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7000031602_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7100164676_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7100164676_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cab6a86abd5c89d9486fca82566ea06cea1cf3714b0840c5d6467d22ab85c29a.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cab6a86abd5c89d9486fca82566ea06cea1cf3714b0840c5d6467d22ab85c29a.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d2a34d4eb496c1f2b96dfe52c64270871edc8b7ad40b694c63b5e788cfc12cdb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d2a34d4eb496c1f2b96dfe52c64270871edc8b7ad40b694c63b5e788cfc12cdb.pdf

• Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
