Dual voltage input of 120/277 VAC 60 Hz. Includes a fully automatic constant voltage, current limited charger with transformer isolation and low battery voltage disconnect. Transfer contact through electric relay. Power distribution made with fused leads through internally located distribution board. Maximum power consumption of 20 W (all models). Test initiated by means of integral test switch. AC-on indicated by LED. AC lock out provision prevents discharge of battery at installation until power is present.

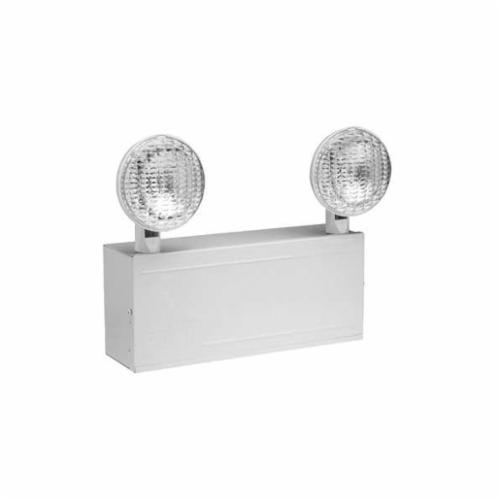

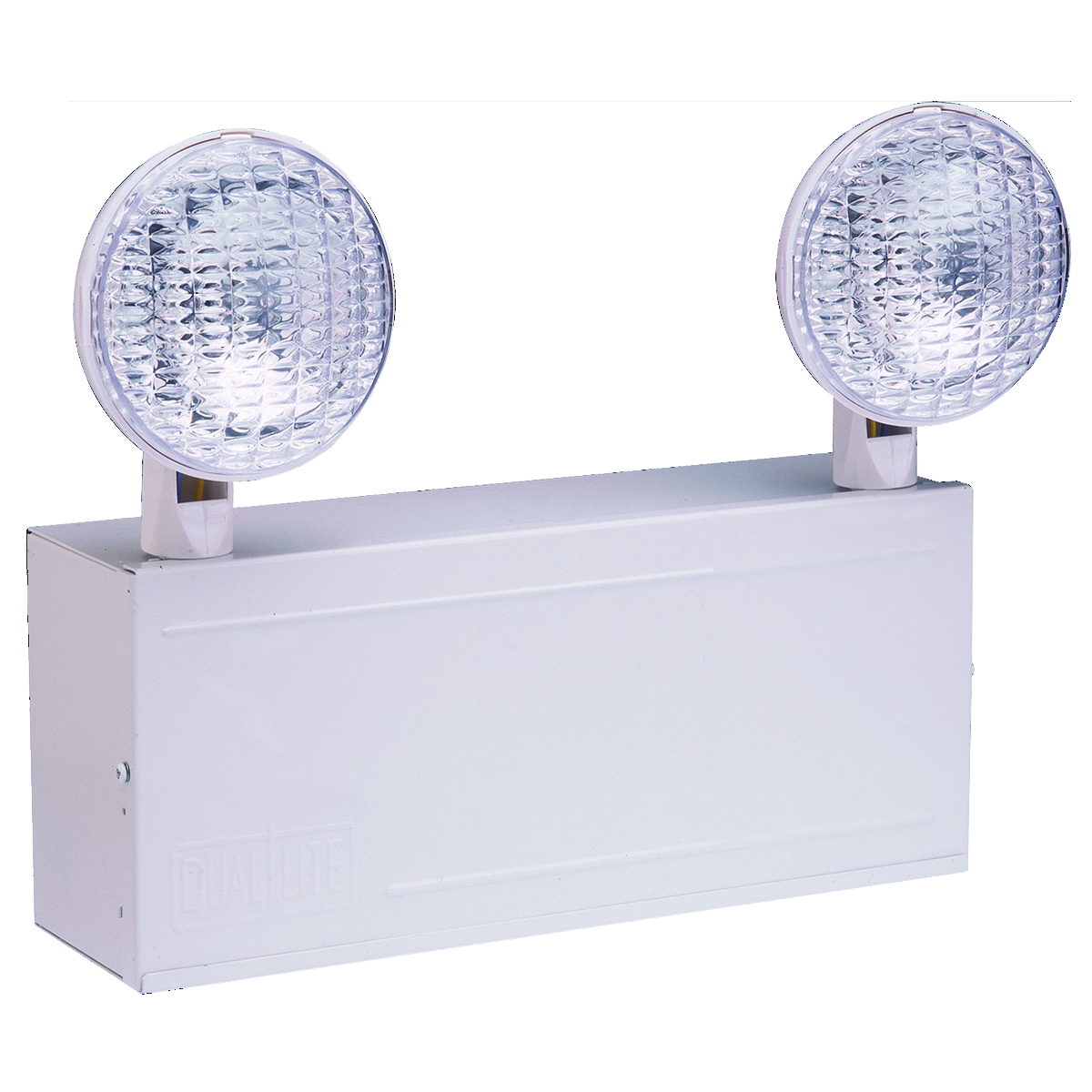

Dual-Lite® Emergency Lighting Fixture, High Capacity, Series: LM Series, 120/277 VAC, 130 W Fixture, 60 Hz Frequency, PAR36 Incandescent Lamp, 130 W Lamp, 2 Heads, Lead Calcium Battery Power Source, Universal Wall Mounting, 15-3/4 in L x 4-3/4 in W x 13-1/2 in H Dimensions, Steel, White

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1b4a5c9ca073549ebecc2a87e4896dd0ff7665c0893332a29347d5479e308e8c.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1b4a5c9ca073549ebecc2a87e4896dd0ff7665c0893332a29347d5479e308e8c.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_022d2082b16173ae5d48fb238b803f1cb218e35132b6beb396da9126cab64846.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_022d2082b16173ae5d48fb238b803f1cb218e35132b6beb396da9126cab64846.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_44348b24095c1fda0bc64e0dd07c4841c2b599dab48efdb782ff16f298babab1.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_44348b24095c1fda0bc64e0dd07c4841c2b599dab48efdb782ff16f298babab1.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_188e0cfbcf6b519b8e6f4eef540b4727616006649e39cb9195c46f859bc1c686.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_188e0cfbcf6b519b8e6f4eef540b4727616006649e39cb9195c46f859bc1c686.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_121865293aba304e1613dfa5fc85fbcac024d396f081b271c14e4eb641eff881.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_121865293aba304e1613dfa5fc85fbcac024d396f081b271c14e4eb641eff881.pdf

• Remote capability, maintenance free battery
• Corrosion-resistant metal housing and front loading cover
• Two emergency lighting heads supplied standard
• Lampheads may be top or side mounted
• Incandescent 7.2 W standard lamps
• Low voltage battery disconnect
• 12 VDC voltage rating
• For corrosion resistant, rugged metal units featuring remote capacity, fully adjustable lighting heads and easy installation
