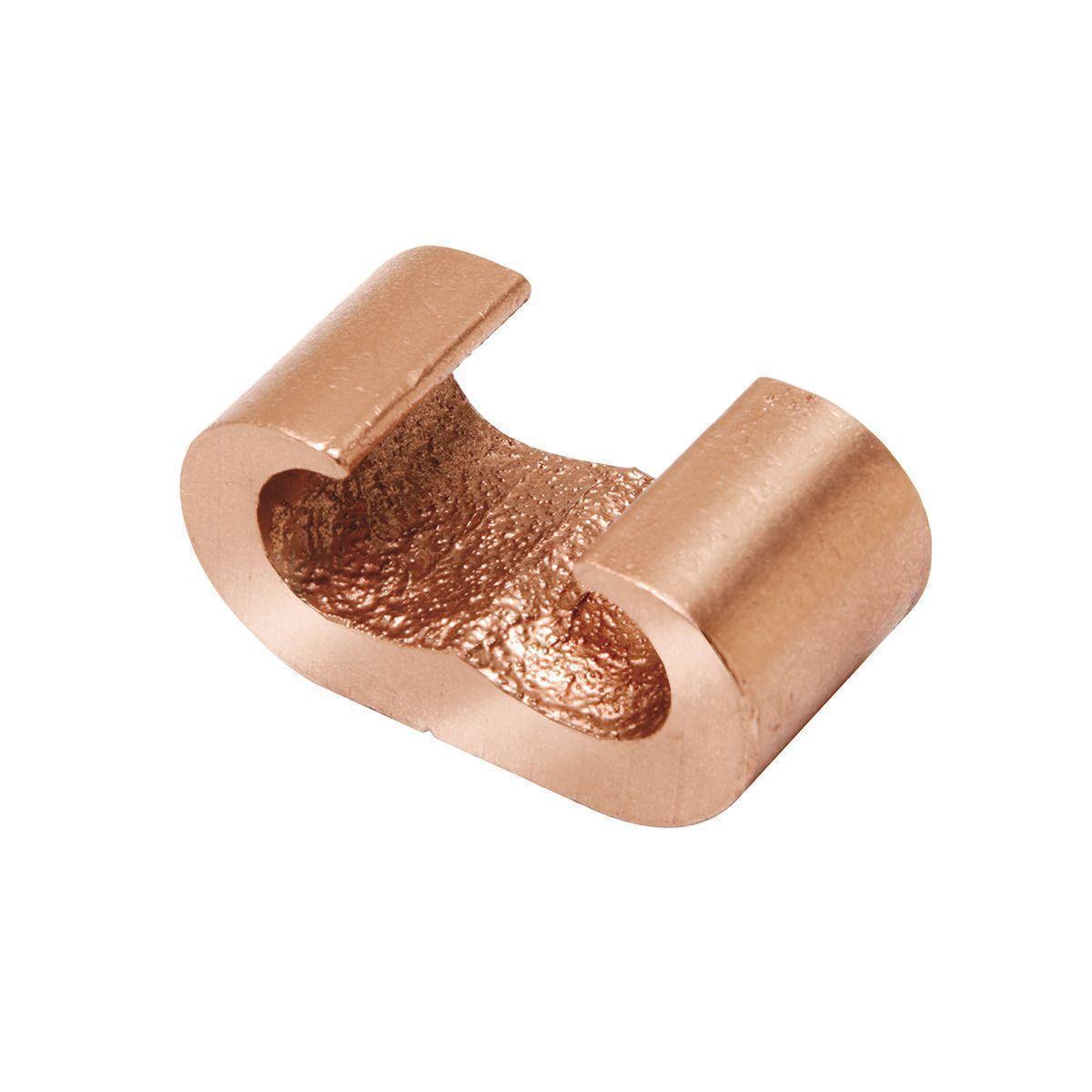

BURNDY® HYGROUND® HYTAP™ Compression C-Tap Connector, Type YGHC-C, C, 6 to 2 AWG Main/Run Size, 6 to 2 AWG Tap, Commercial Stranded/Metric Copper Conductor, Specifications: C Element A Die Index, 1/4 in Ground Rod, Copper, Unplated, 0.75 in L x 1.16 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YGHC2C2_Full_Engineering_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YGHC2C2_Full_Engineering_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YGHC2C2_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YGHC2C2_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YGHC2C2_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YGHC2C2_Specification_Sheet.pdf

• Irreversible compression ground tap figure C connectors
• Accommodates all cable combinations from 6 AWG solid through 500 kcmil
• Pre-filled with PENETROX® compound and strip sealed
• Continuous parallel cables into conductor groove
• C-shaped opening permits placing 2 continuous parallel cables into conductor groove
• CSA certified for wire to ground rod
• 10 to 35 sq-mm conductor size run
• 2, 4, 6 AWG, 10 mm, 35 mm run
• 2, 4, 6 AWG, 10 mm, 35 mm tap
• For HYPRESS, Y35, Y39, Y750, PAT750 tool, U-C die, Y45 tool, U-C die with PT6515 adapter, y46 tool and U-C die with puadp-1 adapter
