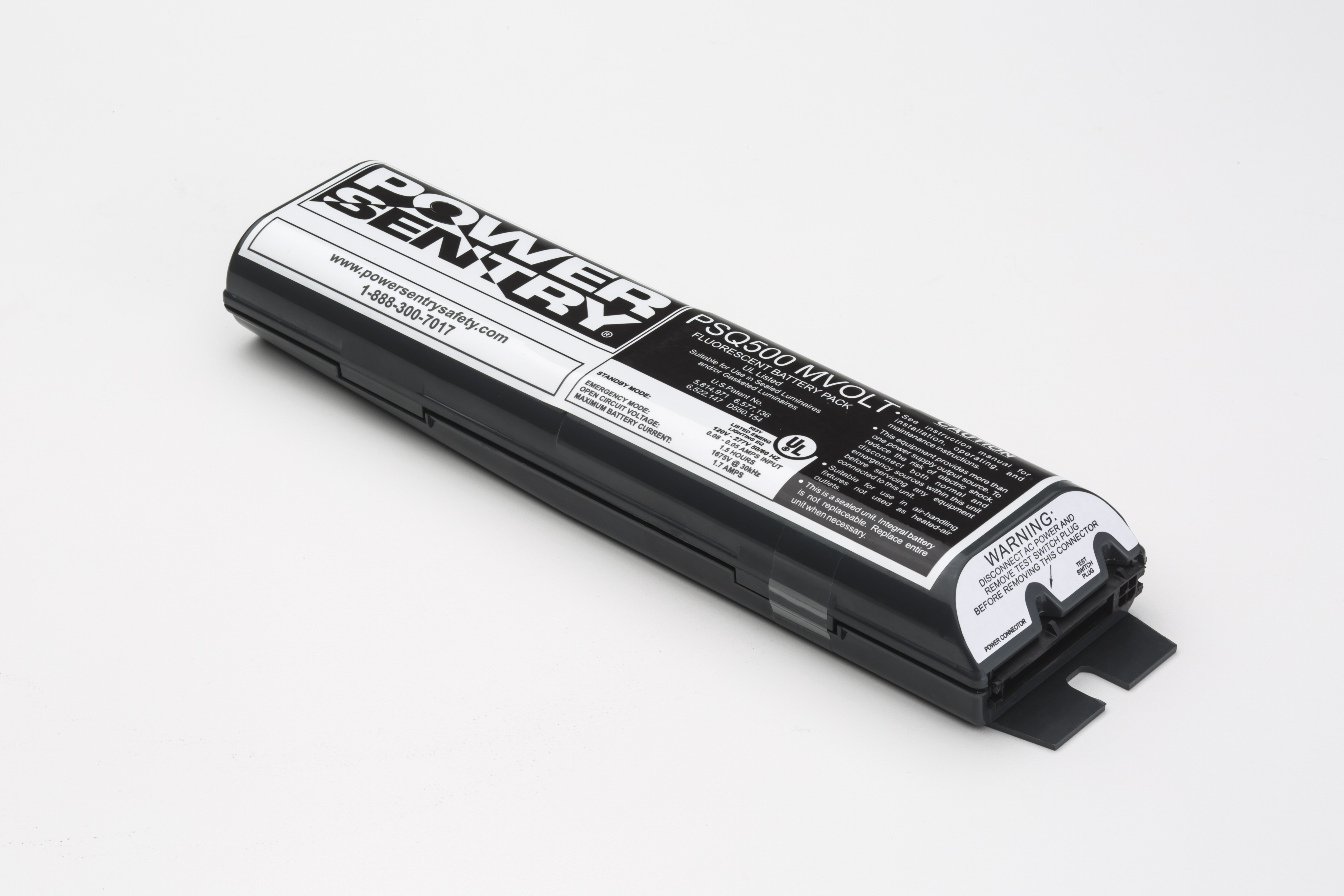

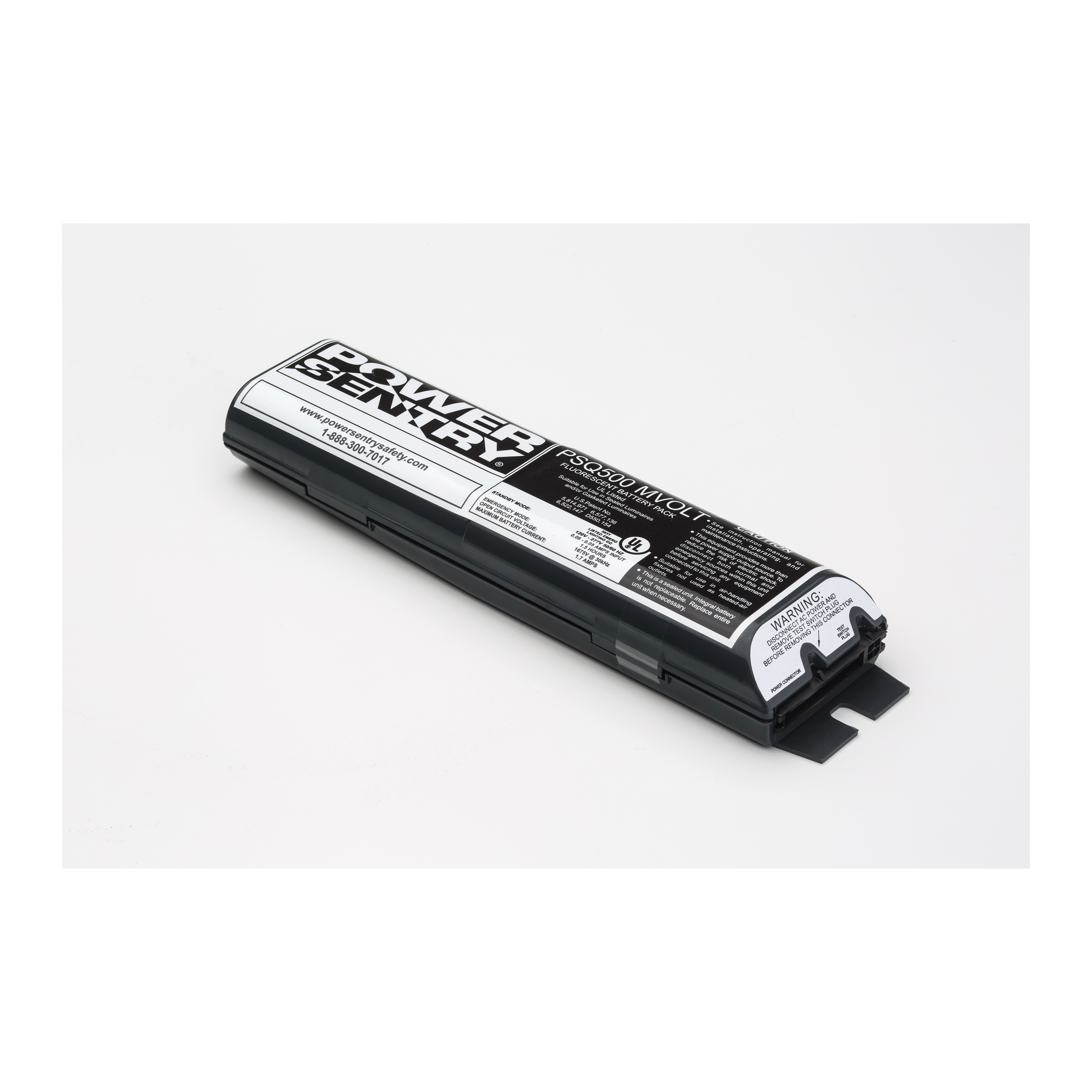

Lithonia Lighting® Fluorescent Battery Pack, Series: PSQ500QD, 3.6 VDC, Thermoplastic, 9-1/2 in L x 2-1/2 in W x 1-1/2 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8c9c1f1aeadcf358d6b69be3d60b9e5a44738157cfdc4e6476851d5b07226f76.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8c9c1f1aeadcf358d6b69be3d60b9e5a44738157cfdc4e6476851d5b07226f76.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• Factory or field installed inside or outside (field only) fluorescent fixture to operate lamps at reduced light output, providing optimum glare-free illumination for a minimum of 90 minutes upon interruption of normal power
• Durable thermoplastic/metal housing resists impact, scratches and corrosion
• UL94 VAC-0 flame rating
• Reduced profile footprint fits in the tightest applications
• Polarized quick-connect pilot light/test switch assembly simplifies installation
• Pilot light and test switch provide visual and manual means of monitoring system operation
• Operates one 2 to 4 ft or U-shaped fluorescent lamp for 90 minutes
• Multi-volt input capability (120 to 277 VAC, 50/60 Hz)
• Additional input lead provided to allow switching of fixture
• Constant current type charger
• Input circuit provides high efficiency and reliable operation
• High efficiency push-pull inverter is the most effective method of converting DC power, it provides maximum light output, battery life and reliability
• Sealed, maintenance free, high temperature range nickel cadmium battery ensures long life over wide temperature ranges
• Automatic battery recharge after 90 minute discharge
• 32 to 100 deg F optimum temperature range
