All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.

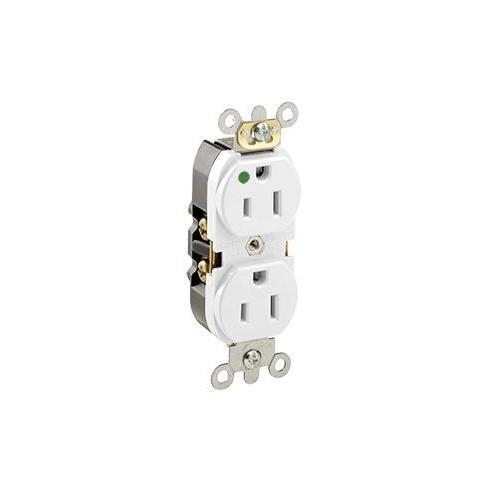

Leviton®, 8200-HLW, Duplex Extra Heavy Duty Illuminated Straight Blade Receptacle, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Extra Heavy Duty/Hospital Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 46 in H x 1.38 in W x 1.12 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_54504-2I_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_54504-2I_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_8200-HLW_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_8200-HLW_RoHS.pdf

• Impact resistant thermoplastic nylon cover and body
• Four corner latches securely fasten face
• Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
• High performance brass #10-32 terminal screws to reduce conductor oxidation
• Back and side wire ground termination brass strap version
• Back and side wiring options
• Break-OFF tabs allow easy 2-circuit conversion
• Apron barrier to prevent accidental contact between terminal screw heads and metal box
• Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
• Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
• Smooth face does not collect dirt
