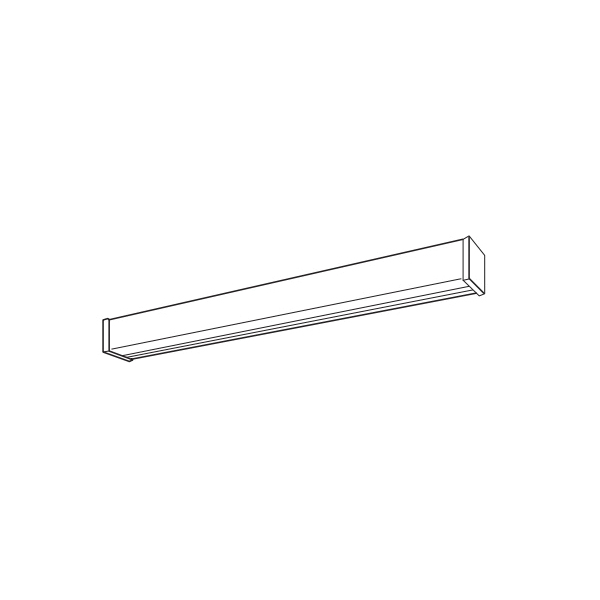

Lithonia Lighting® Wall Bracket Fixture, Series: WC Series, 120 to 277 VAC, 32 W Fixture, T8 Fluorescent Lamp, Bi-Pin Single Lamp Base, 2 Lamps, White Light, Instant Start Electronic Ballast, Acrylic Lens, Class P Insulation, Ceiling/Surface Mounting, Steel Housing Material, Gloss White Housing Finish, 48 in L x 4-5/8 in W x 4-9/16 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a16ab7aa95ff3469ffa905802668b5d2fdcf92d84eb525676f0e12ca73770bad.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a16ab7aa95ff3469ffa905802668b5d2fdcf92d84eb525676f0e12ca73770bad.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• Easy maintenance design for individual or tandem mounting, for row mounting order RMT option
• Heavy duty code grade steel, metal parts are die formed
• 5-stage iron phosphate pre-treatment assures superior paint adhesion and rust resistance
• Standard finish is high-gloss, high reflectivity, baked white polyester (architectural black available)
• Available with high performance A12 pattern clear acrylic or low brightness matte white opal acrylic, front metal fascia eliminates direct illumination
• Provides up down distribution
• AWM, TFN or THHN® wire used throughout, rated for required temperature ranges
• Ballast disconnect provided where required to comply with us and Canadian codes
• End caps spring-loaded for easy diffuser removal
• Easy maintenance design for individual or row mounting
