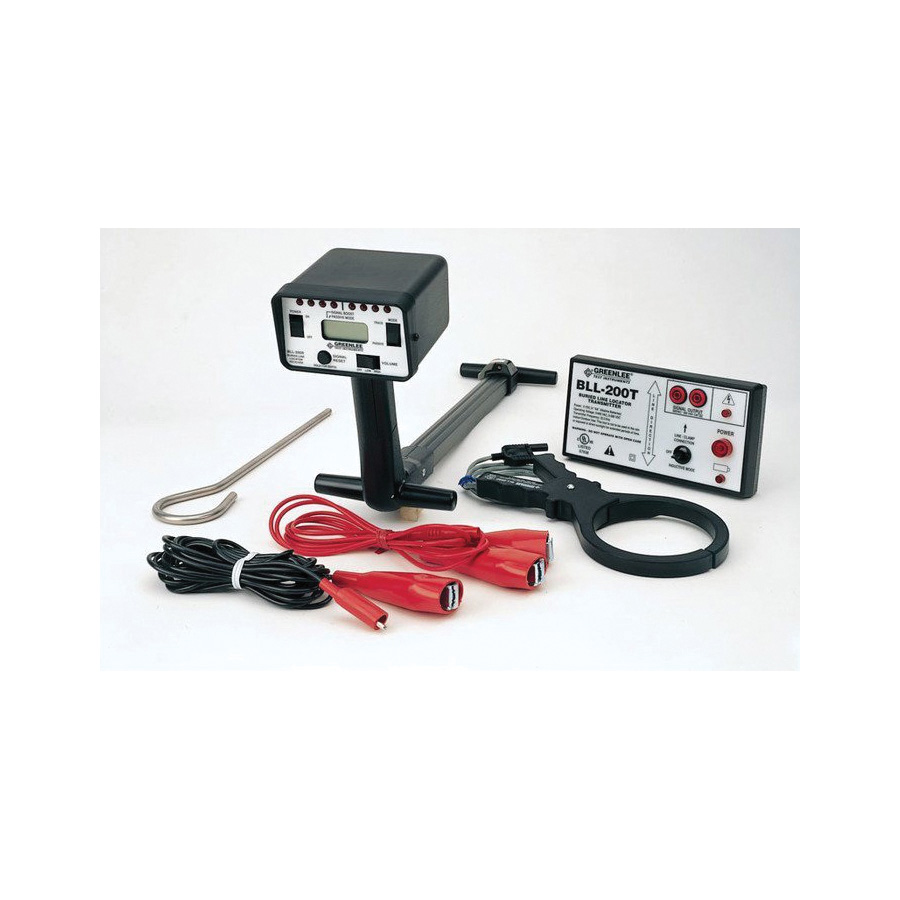

Tempo Buried Line Locator, 600 VAC, 13 mA Open Line, 150 mA Shorted Line, LCD/LED Indicator, 6 VDC Power Source, (4) AA Alkaline Battery, 0 to 270 deg F

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511956273435.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511956273435.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520578202363.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520578202363.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a9bee581cd77a28145601c3307d3e2c9448560c3f1f92e369ad83cc9aabab746.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a9bee581cd77a28145601c3307d3e2c9448560c3f1f92e369ad83cc9aabab746.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520565405041.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520565405041.pdf

• LED and LCD signal strength indicators make it quick and easy to find exact line location
• Light weight and ergonomically balanced
• Automatic signal boost makes it easy to trace lines, even those with very weak signals
• Receiver may be used in active or passive mode
• Receiver locates multiple passive frequencies with a single setting
• Receiver automatically locks out passive range when it detects a transmitter signal, reducing the chance of tracing other lines carrying weaker signals
• Microprocessor based circuitry delivers increased accuracy and features auto-gain control in all environments
• Traces 20 ft underground and provides depth readings up to 15 ft
• Transmitter can be connected to live lines up to 600 VAC
• 33.3 kHz transmitter frequency
• 12 Hz to 24 kHz receiver frequency
• 0.1 ft D resolution
