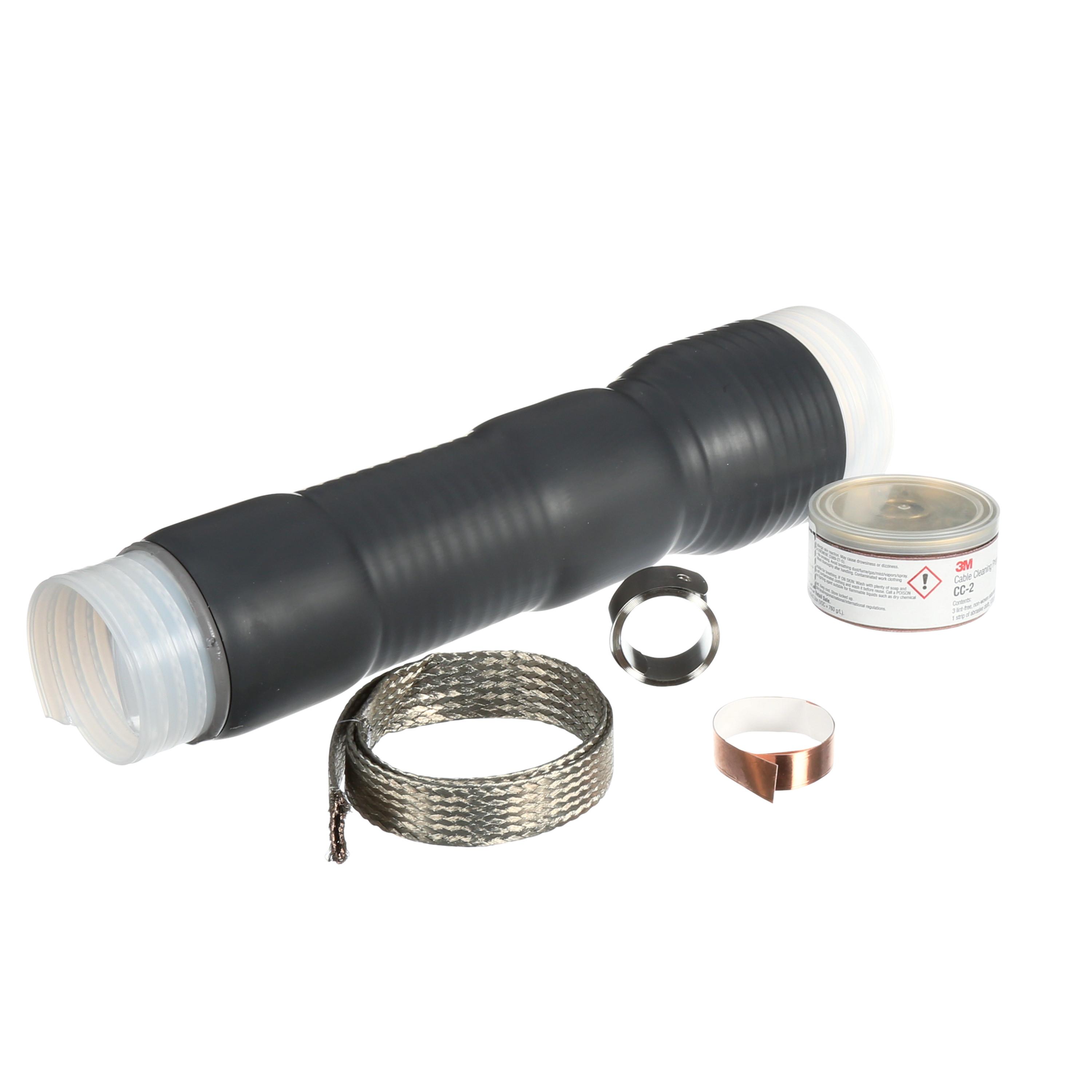

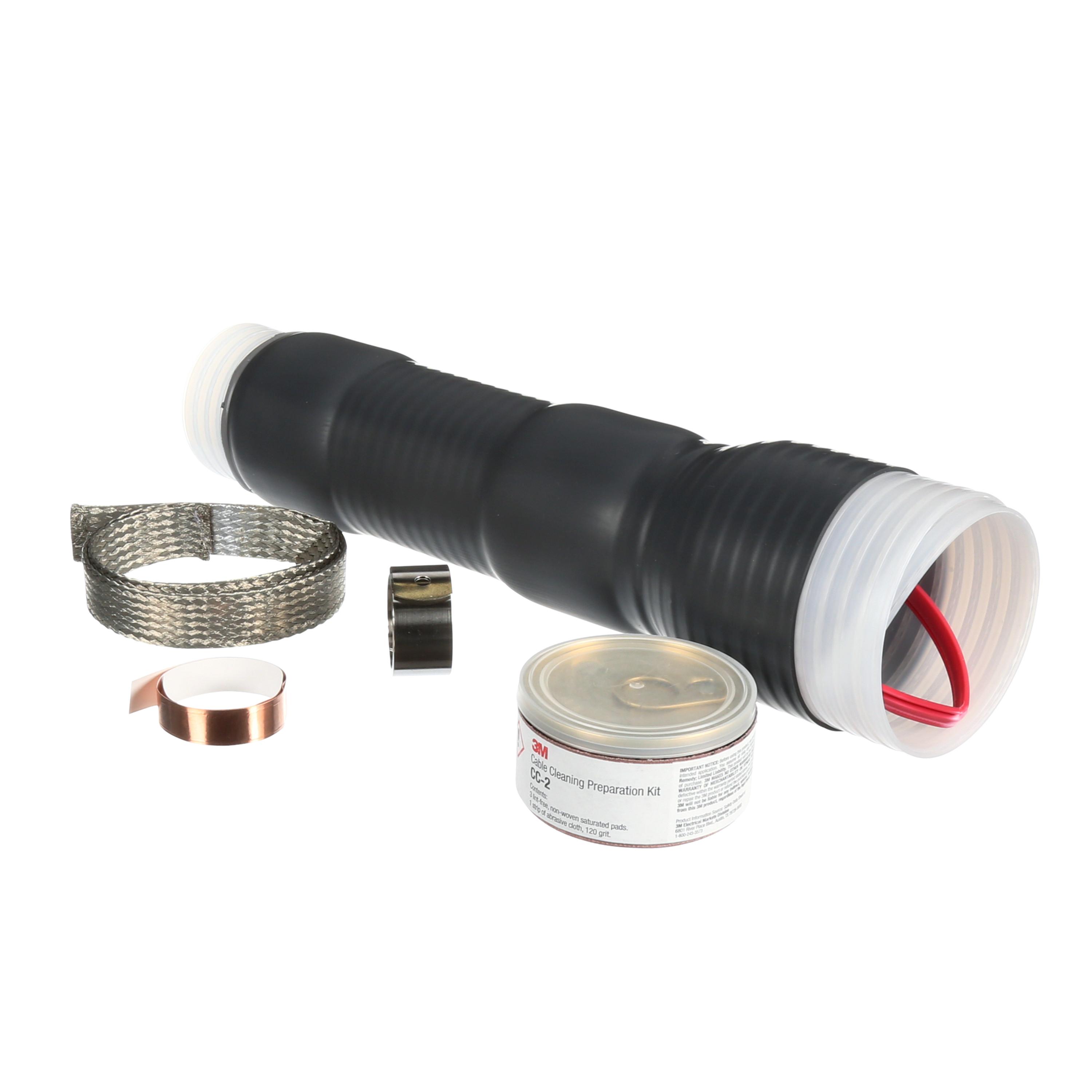

3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.

3M™, 7000006103, Cold Shrink Termination Kit, Series: QT-III 7620-T, Specifications: 3-Terminal, 5 to 15 kV Voltage, 500 to 1500 kcmil Conductor, 110 kV BIL Rated, 1.05 to 1.8 in OD Cable Insulation, 12 in L Max Installed, 1 Piece, For Use With: Single Core Tape Shield, UniShield® and Wire Shield Power Cable, Silicone Rubber, Black

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7100164676_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7100164676_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7000006103_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7000006103_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7100164676_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/3M_7100164676_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d8fc768a03697fd48a4bbd72430907cfcf8e1ab7d1525bacb66032a683126dd9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d8fc768a03697fd48a4bbd72430907cfcf8e1ab7d1525bacb66032a683126dd9.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_118319c02ccebb0ec21780cb21e1aaec7c9d3c8c0f35bf5a99446f9c412bd897.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_118319c02ccebb0ec21780cb21e1aaec7c9d3c8c0f35bf5a99446f9c412bd897.pdf

• Suitable for indoor applications
• Non-tracking, molded, silicone rubber insulation offers durability
• Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations
