B-CAP® wire connector gets you in those hard-to-reach spots comfortably, especially when you're retrofitting or updating. Slim, classic fins and an expanding interior spring give the B-CAP® a secure grip with extra leverage, making it the most compact connector on the market for up to 5 #12 (red model B2).

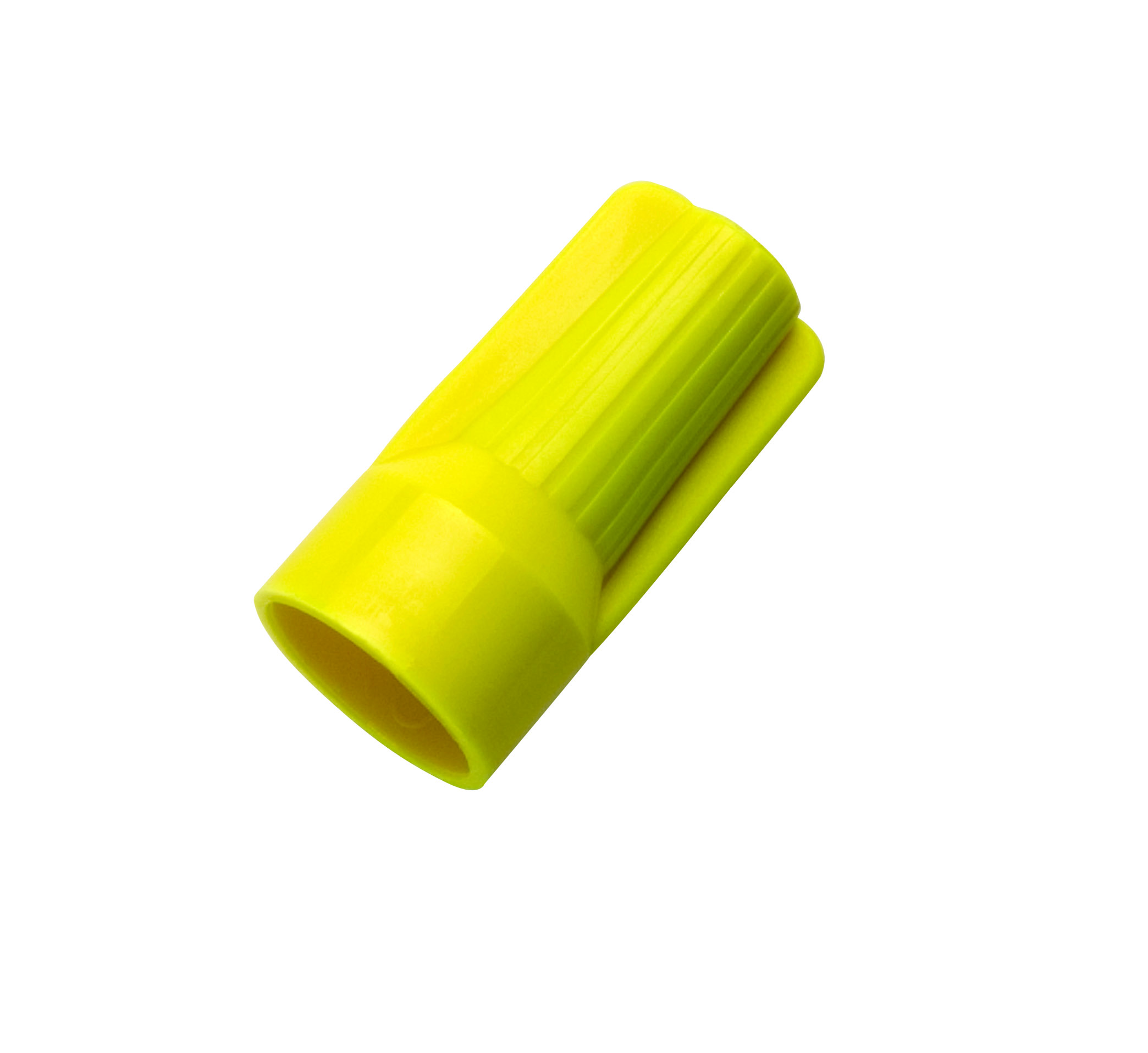

BUCHANAN B-CAP® Wire Connector, Flame-Retardant, Series: B1, Fin Shell Style, Live Action/Square Wire Spring, Solid/Stranded Wire, 22 to 10 AWG Wire, 600 VAC, Specifications: 1/2 in for 16 AWG, 5/8 in for Smaller AWG Wire Strip, 2 to 6 Conductors, 22 to 10 AWG, 20 to 3 AWG Minimum, 12 to 3 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Yellow, 0.5 in Dia x 0.96 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_B1_500JR_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_B1_500JR_RoHS.pdf

• Low profile design gets you into tight spaces and hard to reach spots comfortably
• Slim, classic fin design provides secure grip for extra leverage on maximum wire combinations

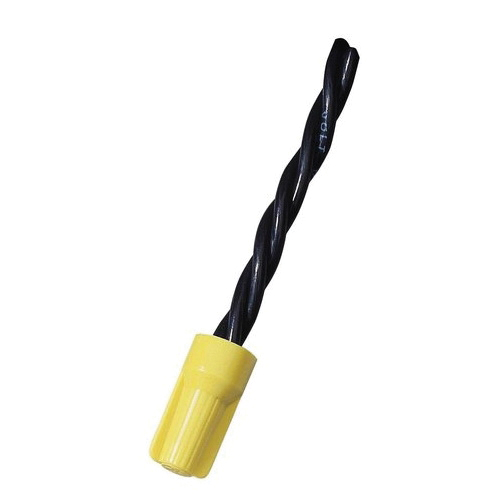

• Square wire spring threads directly onto conductors for fast and secure connections
• Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
• No pre-twisting required
• Unique, space saving profile is perfect for old work or shallow boxes
• Easily removed for repeat usage on same size or larger wire combinations
• 1000 V maximum in fixtures and signs
• 3-color coded models cover a full range of wire sizes from 22 to 6 AWG
• Green-B designed for making ground connections and bonding non-metallic sheathed cable
