B-Line 10104 SCGV

Share Print

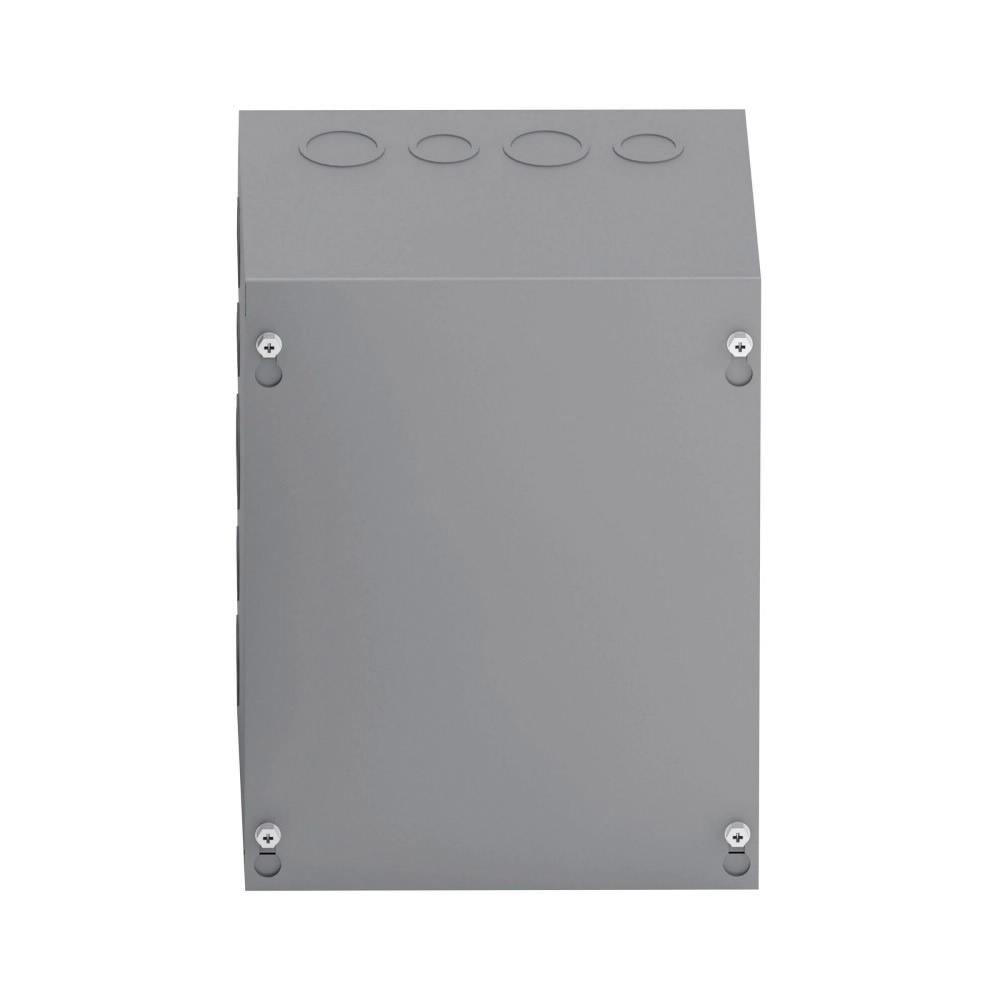

B-Line 10104 SCGV Electrical Enclosure Box With Knockout, 10 in H x 10 in W x 4 in D, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel

  • MPN: 10104 SCGV

  • IESPN: 62681

  • UPC: 782051001556

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
B-Line 10104 SCGV

B-Line Electrical Enclosure Box, 10 in Height, 10 in Width, 4 in Depth, NEMA 1/IP30 NEMA Rating, Screw Cover, Surface/Wall Mounting, Steel, Galvanized, Gray

Height      10 in
Width      10 in
Depth      4 in
NEMA Rating      NEMA 1/IP30
Cover Type      Screw
Mounting Type      Surface/Wall
Material      Steel
Finish      Galvanized
Color      Gray
  • Used as wiring boxes, junction and pull boxes
  • Enclosure and door are fabricated from 12 ga steel
  • Enclosure body has mounting holes on the back
  • Enclosures are available with or without knockouts on the sides, top and bottom ends
  • Cover is secured to the body with plated pan head combo screws
  • Keyhole slots provided the cover allow easy access to the side without remove the screws
  • Hole provision for optional ground lug kit
  • Ground screw provided
  • Protects against contact with enclosed equipment
