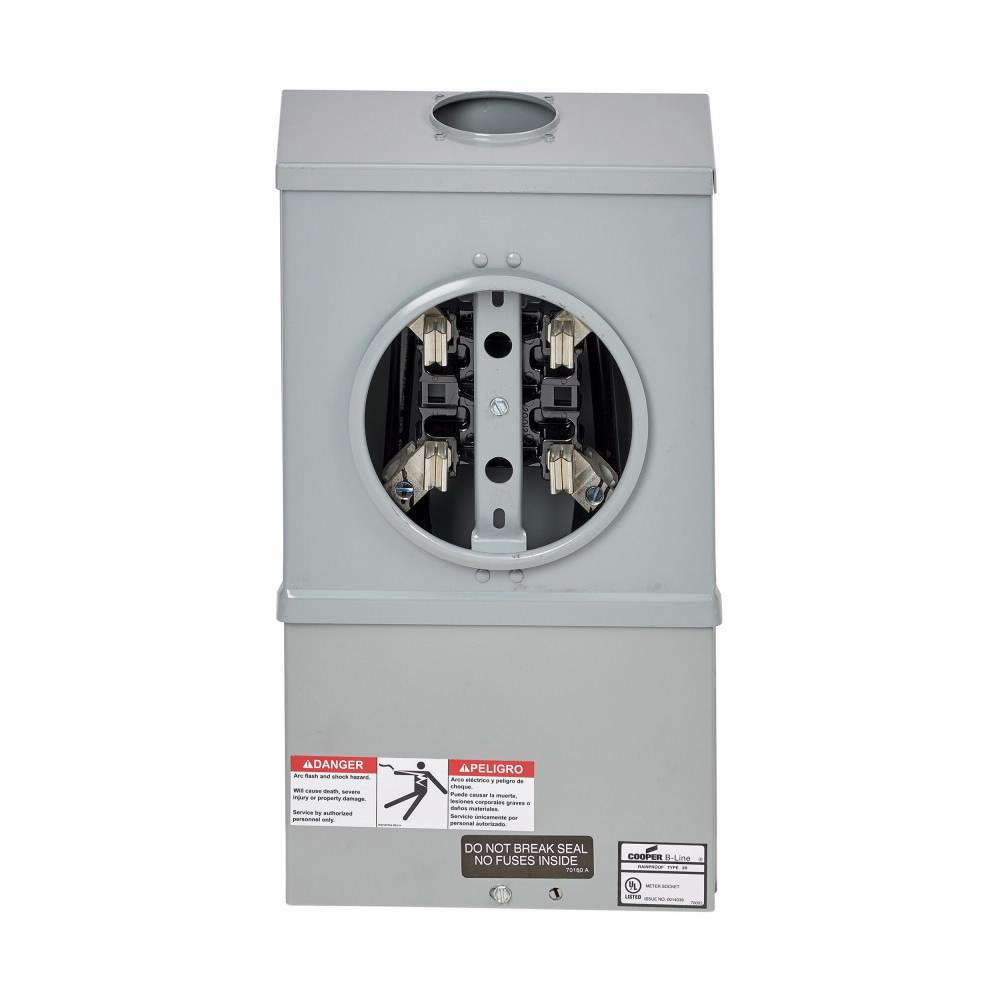

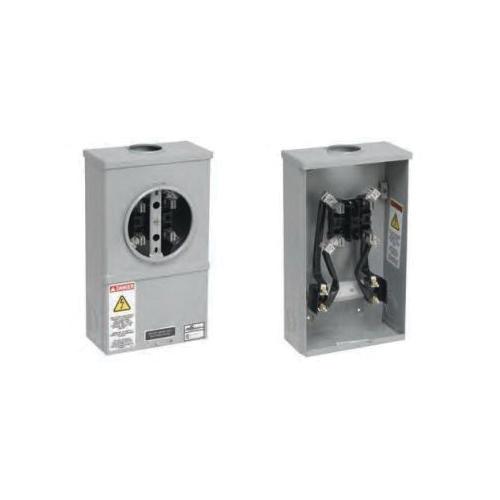

B-Line U121314 1-Position Self Contained Meter Socket, 600 VAC, 100 A, 1 Phase, NEMA 3R Enclosure

  • MPN: U121314

  • IESPN: 55016

  • UPC: 782051470604

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
B-Line U121314

The B-Line series single meter sockets are single position, self-contained meter sockets that offering housing capabilities for the utilities' electrical watt-hour meters in both residential and commercial buildings.

B-Line Meter Socket, 1-Position Self Contained, 600 VAC, 100 A, 1 ph, Overhead/Underground Feed, 4 Jaws, 14 to 2/0 AWG Wire, AW Hub, Ring Cover, Surface Mounting, NEMA 3R Enclosure, 17 in H x 9-11/16 in W x 4-5/8 in D Dimensions

Type      1-Position Self Contained
Voltage Rating      600 VAC
Amperage Rating      100 A
Phase      1
Feed Type      Overhead/Underground
Number of Jaws      4
Wire Size      14 to 2/0 AWG
Hub Type      AW
Cover Type      Ring
Mounting Type      Surface
Enclosure Type      NEMA 3R
Dimensions      17 in H x 9-11/16 in W x 4-5/8 in D
  • ANSI 61 gray E-coated finish
  • Manual circuit closing (link type) bypass under separate cover
  • MCC bypass
  • 3-wire configuration
