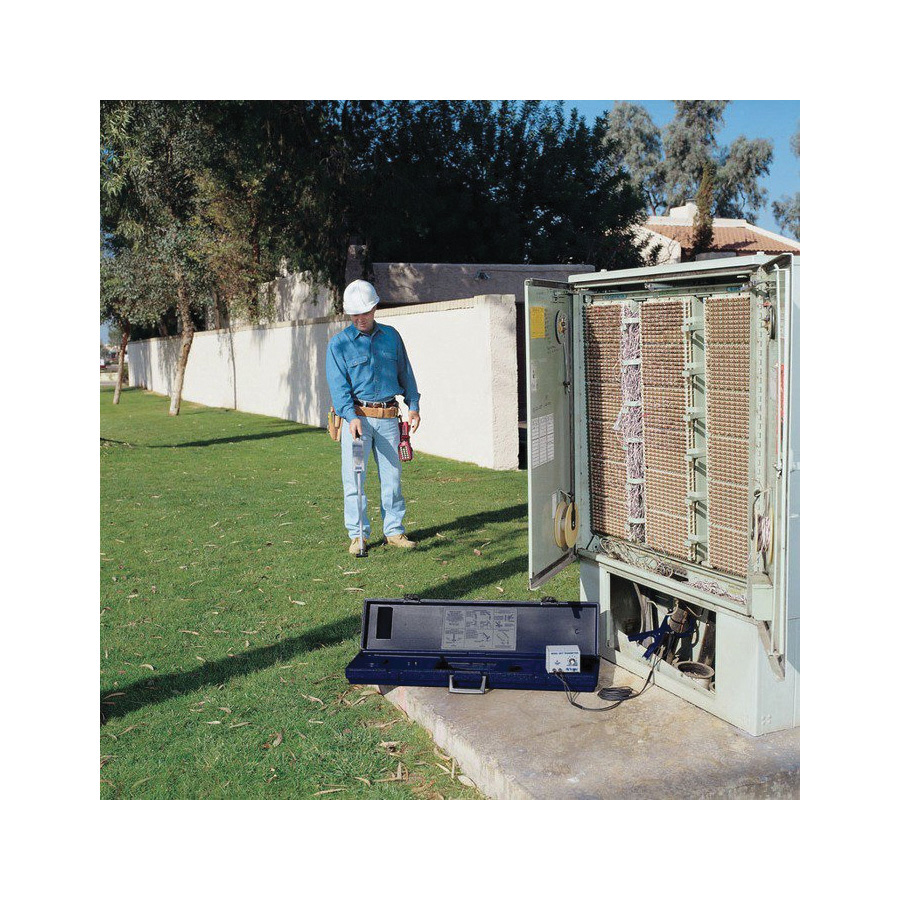

With its inductive signal detection, the Tracker™ II can be used on active or dead systems. Now you can trace the path and determine the depth of buried wires, cables and metallic pipes or conduit and find the ends of a cut cable without having to deactivate the systems.

Greenlee® Tracker™ II Cable Locator, 447.5 kHz Carrier Frequency, Aluminum/Polyethylene, Powder Coated, 33-1/2 in L x 8-1/4 in W x 3-3/4 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873498783.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873498783.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520547353220.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520547353220.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520565405041.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520565405041.pdf

• Traces the path and determines the depth of wires and metallic pipes on active or dead systems without having to deactivate the system
• Light weight receiver provides both audible and visual indications of signal strength for accurate identification
• Transmitter output and receiver sensitivity are both fully adjustable for maximum accuracy
• Transmitter offers three methods of connection - direct, inductive coupler or inductive antenna
• Long range wire locating
• Work on active or dead systems
• Fast, simple operation
• Three ways of connecting to pipes or cables
• Inductive coupler clamps around the wire or pipe for use on active lines or where isolating the line is not an option
• Inductive antenna is built into the case housing and allows the transmitter to be placed on the ground over the wire path to radiate a signal down onto the conductor
• Traces over distances to 4000 ft and depths to 7 ft
• Adjustable sensitivity and transmitter power
• High frequency transmitter provides range up to 4000 ft (1219 m) and depths up to 7 ft (2 m)
• Receiver is 32 in long (813 mm)

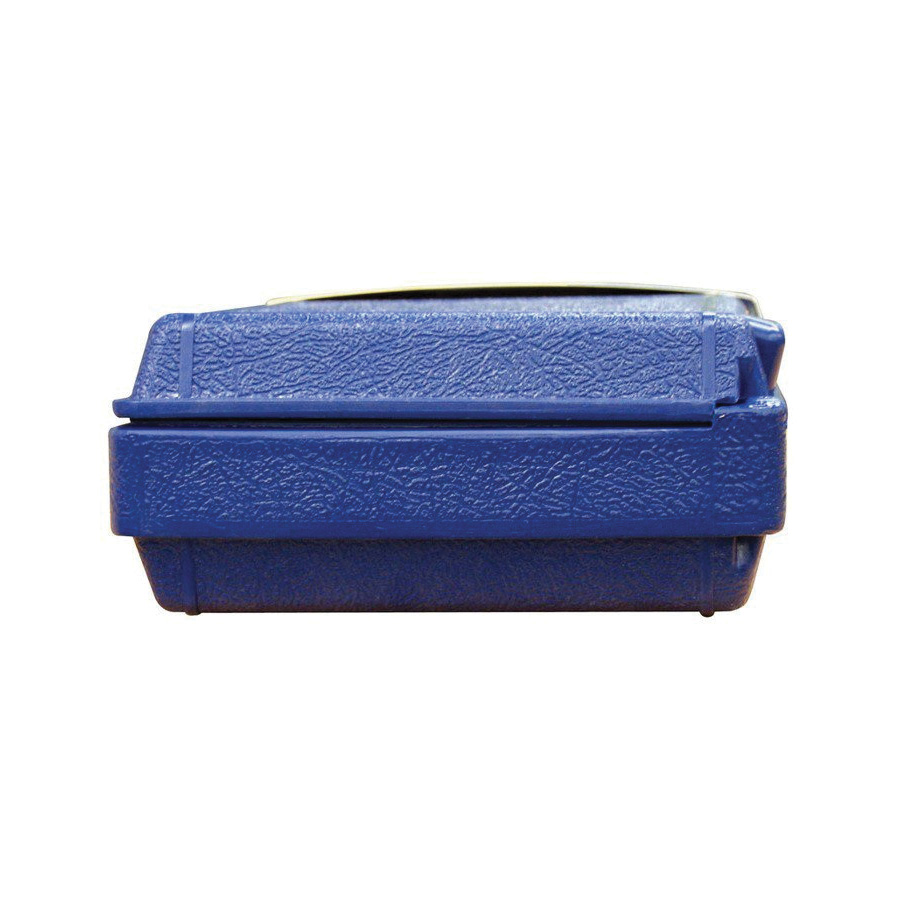

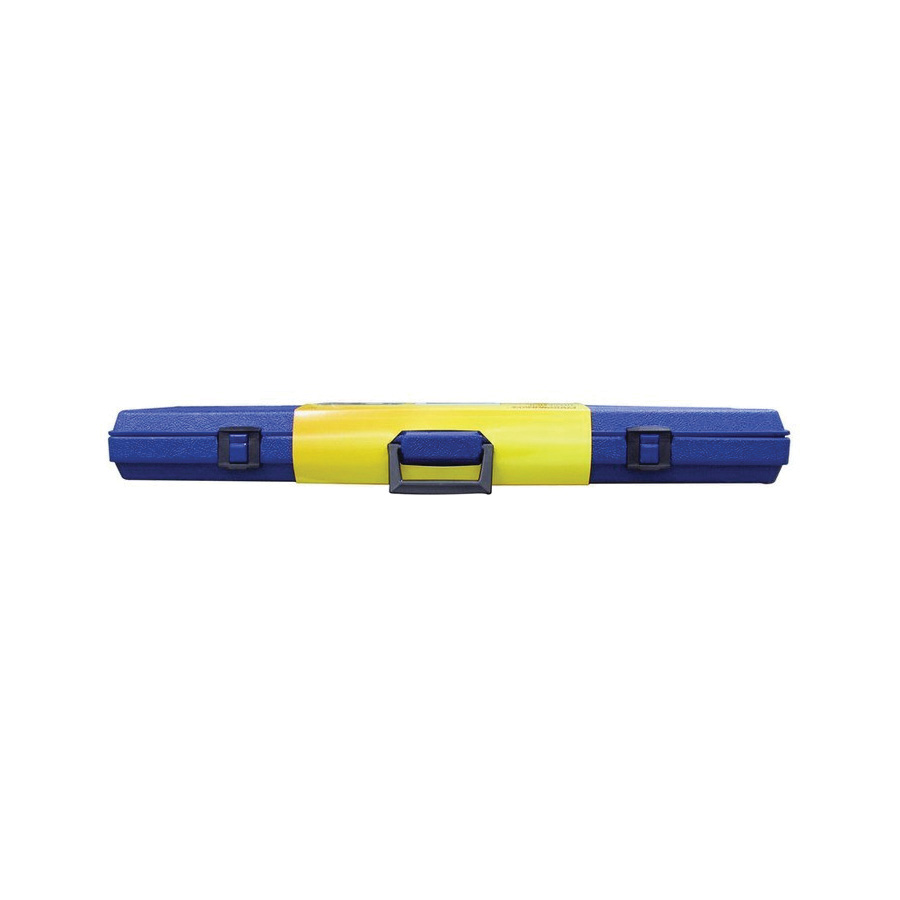

• Transmitter/receiver-powder coated aluminum, case-vacuum formed polyethylene
• 90 min transmitter and receiver automatic shut-OFF
• 40 VAC peak maximum transmitter power
