Perma-Cote offers a complete line of PVC coated conduit, fittings and accessories to provide resistance to corrosion for your electrical raceway systems in the most demanding environments.

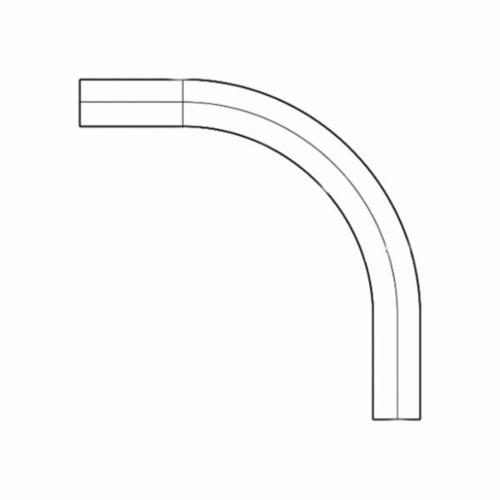

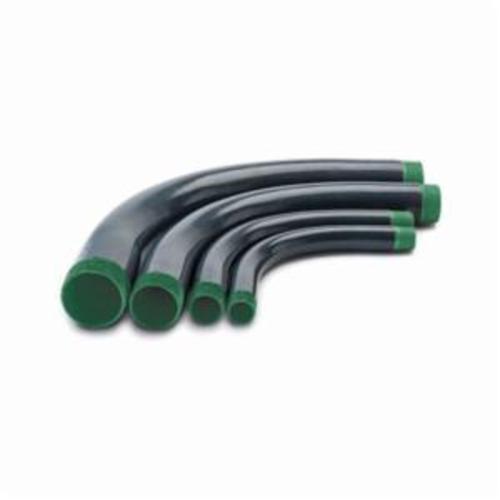

Perma-Cote Conduit Elbow, Series: EL Series, 1/2 in, 90 deg, 4-1/4 in Radius, Steel, Gray/Green, PVC Coated, 0.632 in ID x 0.92 in OD

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Robroy_PRLBY25_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Robroy_PRLBY25_RoHS.pdf

• 40 mil gray PVC exterior coating, 2 mil green urethane interior coating
• Plastic thread protector caps are color coded for quick identification of conduit size
• The underlying zinc coating is a supplemental corrosion protection coating
• Restricted for use with threaded fittings only
• Factory bent elbows are more accurate, quicker to install and more economical because they save field bending time and do not waste materials
• Factory bent standard radius elbows are available and ready to ship
• Electrical continuity is maintained across assembled joints
• UL listed, standard 6 with PVC as the primary corrosion protection for the steel conduit
• 0.104 in THK
• 12 CRFB sizes from 1/2 through 6 in
• Black thread protector cover
• Standard radius
