WIRE-NUT® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The WIRE-NUT® also features a tough, flame retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

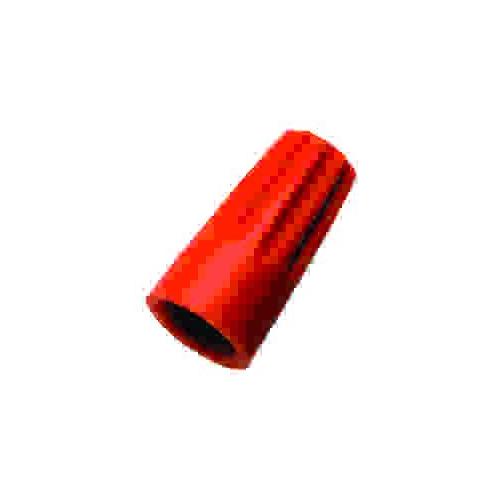

IDEAL®, 30-673, Wire Connector, Flame-Retardant, Series: 73B®, Positive Grip Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 14 AWG Wire, 600 VAC, Specifications: 3/8 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 18 to 1 AWG with 20 to 2 AWG Minimum, 14 to 2 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Orange, 7/16 in W x 55/64 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ac670a76f32af3897864e57283c577aa81e7fb7ef0a3d52fbb33b576fe1a9007.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ac670a76f32af3897864e57283c577aa81e7fb7ef0a3d52fbb33b576fe1a9007.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_452J_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_452J_Manual.pdf

• Fixed, square wire spring creates its own threads maintains a secure positive grip that will not relax over time
• No pre-twisting required, positive grip design provides fast and easy installation
• Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
• Reusable for easy circuit changes and additions
• For tough environmental conditions
• Refined range to handle all common applications; Excellent for fine stranded wire applications
• Positive grip shell that is comfortable to twist-on with fingers
