Leviton® isolated ground receptacles are easily identified by an orange triangle or a contrasting color ON the face of the device per UL 498. This permanent symbol ON the face or an orange face of any Leviton® receptacle means that the ground path is electrically isolated from the strap, wallplate screws and all other components of the device. This design ensures a pure or isolated ground path from the grounding contacts to the green ground screw. When a dedicated grounding conductor is connected to the green ground screw the isolated system is complete.

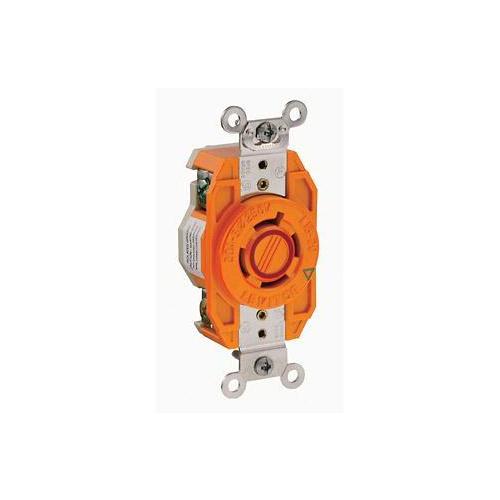

Leviton® V-0-Max™ Locking Receptacle, 3-Phase Isolated Grounding, 480 VAC, 20 A, 5 hp, 3 Pole, 4 Wires, NEMA L16-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Orange, 46 in H x 1.69 in W x 1.31 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_2310_J_Instruction_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_2310_J_Instruction_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cc18b4593754d94a3e065b0e1e9f59596d83c62f3df3b1dad1b98f5b66d0e42a.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_cc18b4593754d94a3e065b0e1e9f59596d83c62f3df3b1dad1b98f5b66d0e42a.pdf

• 1-piece brass contact provides longer life and continuous conductivity vs. multi-piece riveted styles
• Extra thick, corrosion resistant nickel plated brass strap
• Amperage, voltage, NEMA configuration and manufacturer molded into face lasts longer than stamping and makes for fast, easy identification and replacement
• Terminal identification molded into the body lasts longer than stamping
• Nickel plated brass clamp type terminals support back and side wiring and resist corrosion
• Color coded voltage ID ring on face for quick visual identification
• Box mounting
• 16 to 8 AWG wire size
• Flush mount
