Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.

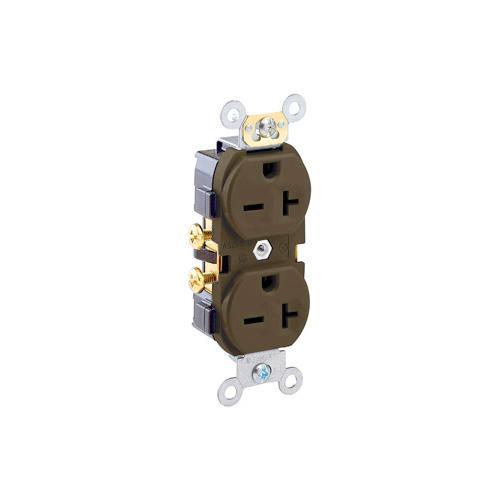

Leviton®, 5822, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 250 VAC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Brown, 46 in H x 1.56 in W x 19 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5824_Installation_Manual_CA.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5824_Installation_Manual_CA.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5822_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5822_RoHS.pdf

• Manufactured to withstand the demands of commercial and institutional applications
• Heavy duty brass power contacts for maximum conductivity and plug retention
• Shallow design for maximum wiring room in box
• Wallbox mounting
• Self-grounding
• 1-phase
• Narrow body
• 2000 VAC minimum dielectric strength
• Zinc plated steel strap
• 14 to 10 AWG wire terminal
