Leviton® 32000 and 42000 series panel mounted multi-phase surge protective devices are some of our most popular surge protection panel lines. These cost effective products provide excellent service entrance and branch panel protection for any. Commercial/Industrial application. All models protect against high energy, high voltage transient surges and are made with exceptional durability for long term protection.

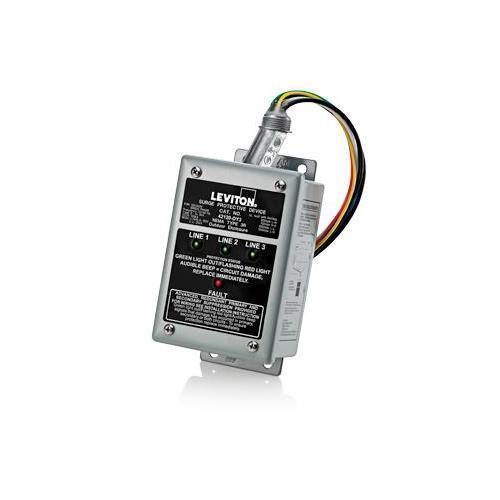

Leviton® Surge Panel Protector, Type 2 5-Wire, Series: 42000, 30 A, 120/208/220 VAC Electrical Rating, 50/60 Hz Frequency, 3 Phase, 12 AWG Wire, 100 kA Short Circuit, 80 kA Peak Surge Current, Modes of Protection: 4, LED/Noise Filtering/Audible Alarm Indicator, Environmental Conditions: -10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, NEMA 3R Enclosure, Panel Mounting, 7-1/2 in H x 4-1/4 in W x 3-1/4 in D Dimensions, Steel, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f47419850f437a8d9e78f06e1733c1fb144157bf39c66e6063e2989f8a3e6c71.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f47419850f437a8d9e78f06e1733c1fb144157bf39c66e6063e2989f8a3e6c71.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_32120_1_Instruction_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_32120_1_Instruction_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e6f24d995ec8c5914acd9da1113583505ee2335ddd7e266ad6f1e4818ceb97a7.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e6f24d995ec8c5914acd9da1113583505ee2335ddd7e266ad6f1e4818ceb97a7.pdf

• 42000 series incorporates enhanced noise filtering and sine wave tracking for superior protection
• Parallel operated design features 40 mm Dia, metal oxide varistors and EMI/RFI filter circuitry equipped with high voltage rise capacitors for harmonic tolerance
• Equipped with indicator lights and audible alarm for monitoring power and surge suppression status
• 3-phase units are suitable for both WYE and DELTA alternating current systems
• Parallel hardwired via 12 AWG wire connection
• Real time protection status LEDs and audible alarm diagnostics
• Transient voltage surge suppression module
• Without surge counter
