Leviton® industrial grade AC toggle switches for extra heavy duty applications represent top of the line quality and peak performance. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

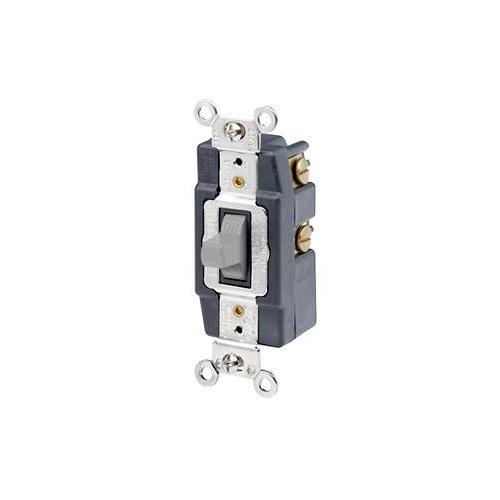

Leviton®, 1256-GY, Toggle Switch, Extra Heavy Duty, 120/277 VAC, 15 A, 1/2, 2 hp Power, SPDT Contact Configuration, 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Gray, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.37 in W x 2.29 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_1257_R_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_1257_R_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_1257_R_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_1257_R_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_89322687e814ae0ea239b3486d45810d3a1a44d01edb252033b3885f6f9bab83.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_89322687e814ae0ea239b3486d45810d3a1a44d01edb252033b3885f6f9bab83.pdf

• Positive switching action with center OFF position
• Large silver cadmium oxide contacts for long life prevent sticking, welding and excessive pitting
• Clamp type terminals accept up to 10 AWG copper wire
• Full rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating
• 1/2 hp at 120 VAC, 2 hp at 240 to 277 VAC power rating
