Atkore's aluminum interlocked armor Type MC cables are named MC Lite® and offer a lightweight alternative to steel MC cables. MC Lite cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.

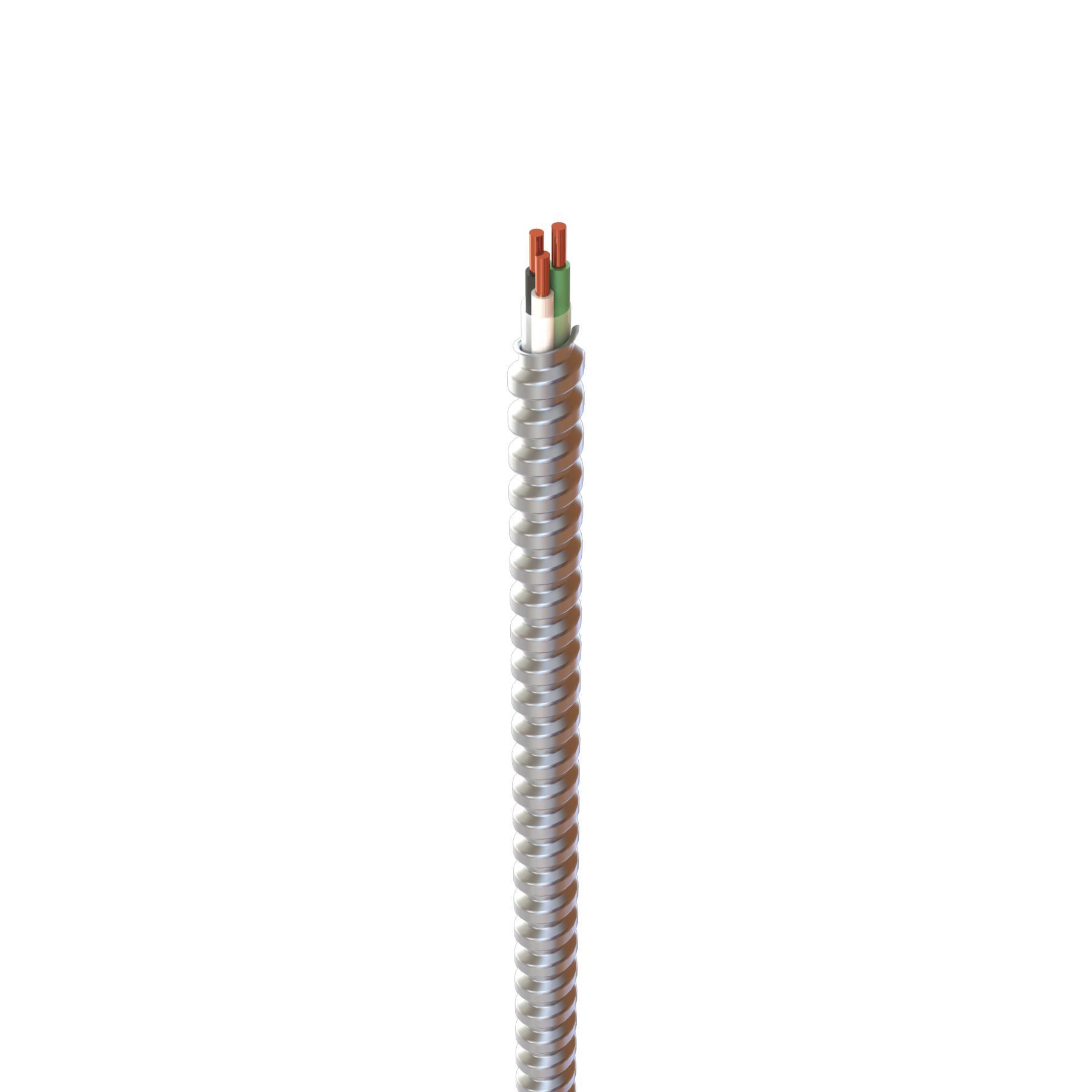

AFC Cable Systems MC Lite® Metal Clad Armored Cable, Type MC Traditional, Coil Packaging, 600 VAC, 2 Conductors, Solid Copper Conductor, 10 AWG Conductor, 0.56 in OD, 250 ft Length, THHN/THWN Insulation, Interlocked Aluminum Strip Jacket, 90 deg C

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/AFC_Cable_Systems_2107_32_00_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/AFC_Cable_Systems_2107_32_00_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b3a45fd37f604fb07caac5467ce31cebe6cf1831a35cf872be0483f573a6a008.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b3a45fd37f604fb07caac5467ce31cebe6cf1831a35cf872be0483f573a6a008.pdf

• MC Lite® is a traditional type MC cable containing one or more copper grounding, conductors the armor is not an equipment grounding means
• Technically equivalent and economically superior to traditional raceway and wire installations
• ColorSpec ID/Color-Trak ID System

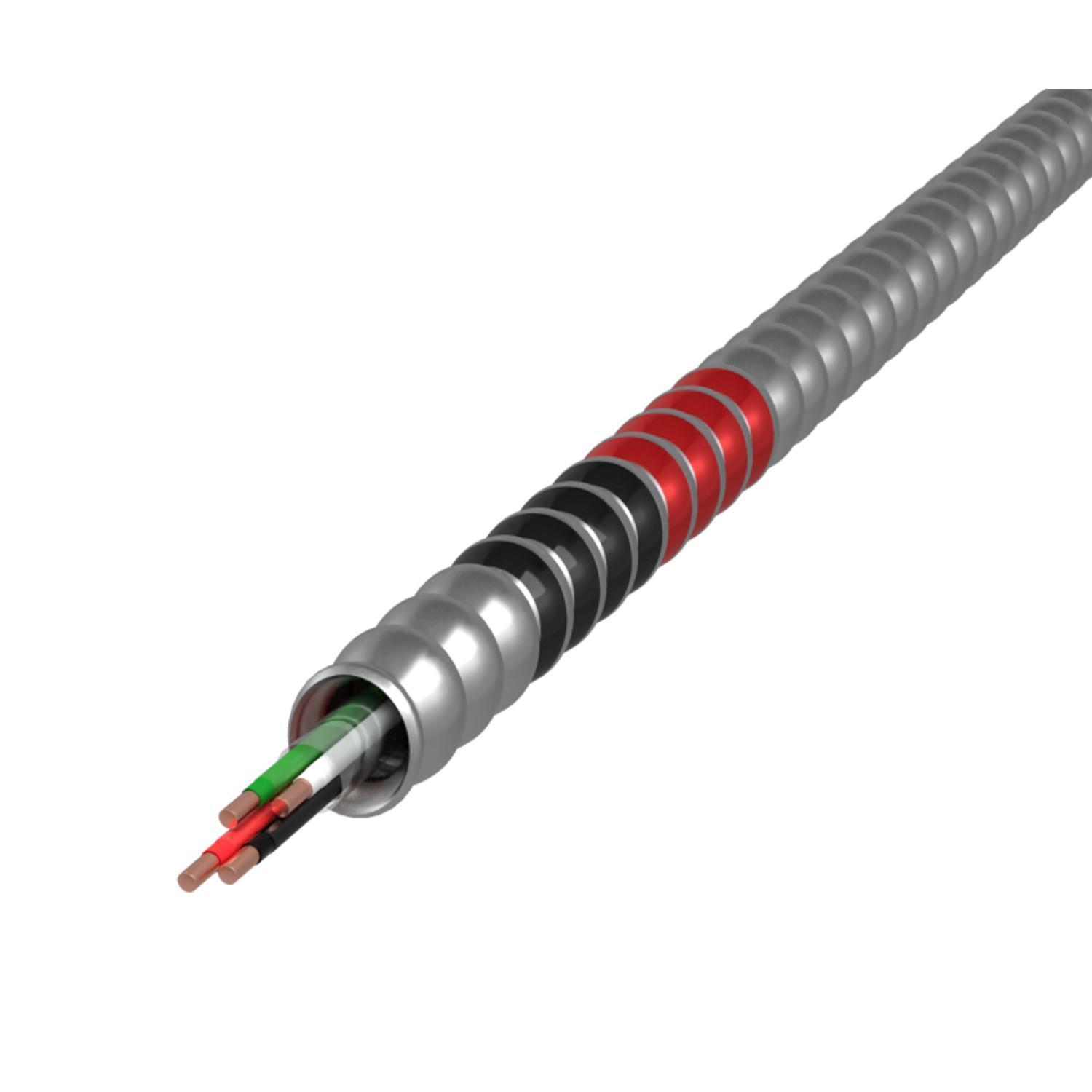

• Plain aluminum armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type.
