Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series time switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.

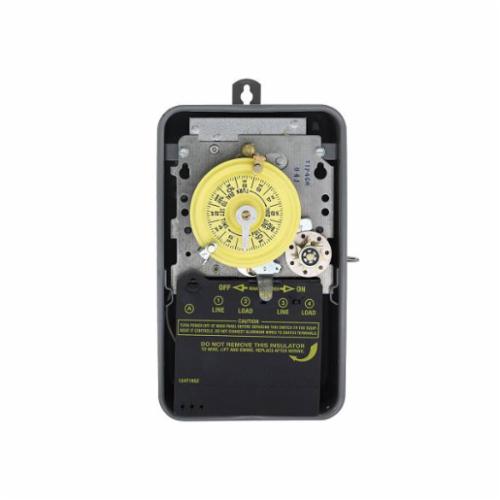

Intermatic® Mechanical Timer Switch, Series: T170, 208 to 277 VAC, 40 A, 5 hp, 2 Pole, 2NO 2 Form A DPST Contact Form, 24 hr Time Setting, NEMA 3R Enclosure, -40 to 130 deg F, Wall Mounting, 10-1/8 in H x 6-1/2 in W x 3-5/8 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T174CR_Instruction_Installation_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T174CR_Instruction_Installation_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dc60e36a6b303aeae9876823b19c163807a7b394bade3d952903272739d2bc05.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dc60e36a6b303aeae9876823b19c163807a7b394bade3d952903272739d2bc05.pdf

• Controls loads up to 40 A per pole
• Direct 24 hr control of most loads
• Up to 10 ON/OFF operations each day
• Minimum ON/OFF times of 1 hr
• Manual override
• Minimum of 16 hr carryover operation
• Carryover automatically rewinds and only takes one hour for every two hours of power loss
• 40 A at 120 to 480 VAC (resistive), 40 A at 120/240/277 VAC (tungsten, inductive)
• 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor power
• 60 Hz frequency
• 3 W power
• 1000 VA pilot duty
• 24 hr time duration
• 16 A, 277 VAC electronic ballast
