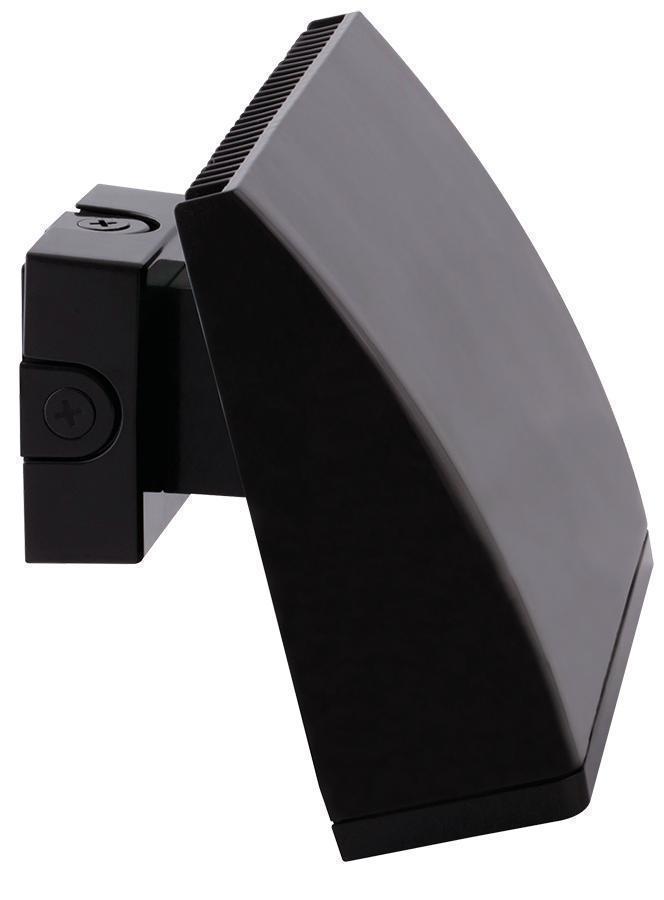

RAB Wallpack, Standard, Series: WPLED, 100 to 240/277 VAC, 60 W Fixture, 0.51/0.33/0.29/0.24 A, LED Lamp, 52 W Lamp, 100000 hr Average Life, Neutral Light, 4000 K Color Temperature, 82 CRI, Class 2/Constant Current Ballast, Tempered Glass Lens, 2294 Lumens, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 10-1/4 in L x 9-1/2 in W x 3-7/8 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_WPLED80Y_D10_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RAB_WPLED80Y_D10_Installation_Manual.pdf
• VIDEO LINK http://www.youtube.com/watch?feature=player_embedded&v=GQ-TTqLz7v0

• High performance LED light engine
• Maintains 70% of initial lumens at 100000 hr
• Weatherproof high temperature silicone gasket
• Superior heat sinking with die cast aluminum housing and external fins
• Replaces 250 W MH
• Traditional wallpack look from the front
• Suitable for use in 40 deg C ambient temperature
• Cast aluminum thermal management system for optimal heat sinking, the WPLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature
• 0.51 A at 120 VAC, 0.33 A at 208 VAC, 0.29 A at 240 VAC, 0.24 A at 277 VAC
• Without photocell
