When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.

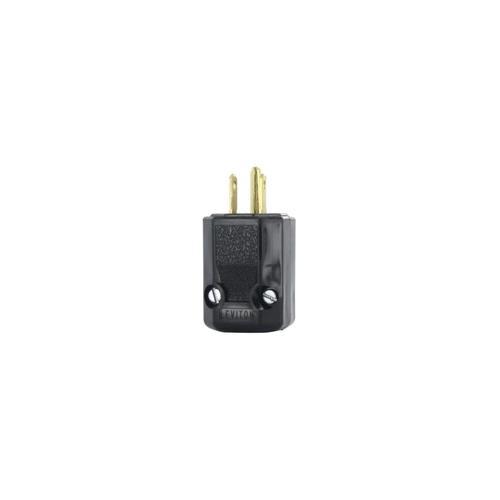

Leviton® 5266-N Straight Blade Plug, Cable Mount Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, 0.25 to 0.685 in Diameter Cord, -40 to 60 deg C, Nylon, Black, 1.53 in Dia x 1.98 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f1a62b2eca76c10e6e97afcf0ff5ad218a5946165ac98914bb2b2091109023d9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f1a62b2eca76c10e6e97afcf0ff5ad218a5946165ac98914bb2b2091109023d9.pdf

• Rugged nylon construction resists impact, sunlight, chemicals and rough use
• All contacts are solid 1-piece brass for better conductivity
• Triple wipe, heavy duty power contacts set in deep pockets to resist damage
• Captive, color coded brass 8 AWG terminal screws
• Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
• 18 to 10 AWG terminal accommodation
• Zinc plated steel assembly screws and solid brass blade and contacts
• Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
• Super tough nylon body
