Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton® surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

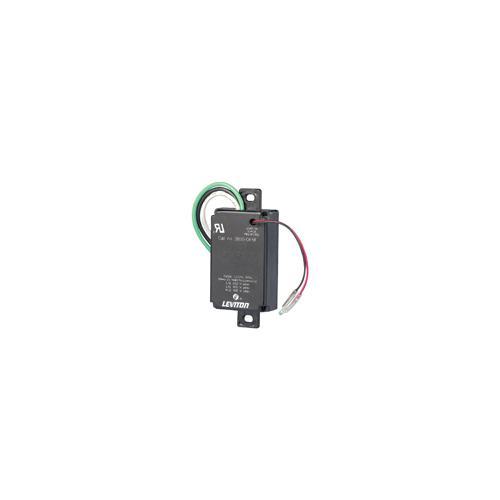

Leviton® Surge Protective Device, Type 4 Wired-In, Series: 3800, 120 VAC Electrical Rating, 50/60 Hz Frequency, 2 Pole, 3 Wires, 3 kA Nominal Discharge, Audible Alarm/Light Indicator, Environmental Conditions: -10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Condensing Humidity, NEMA 1 Enclosure, Surface Mounting, Pigtail Lead Terminal, Polycarbonate, 3.78 in H x 1.66 in W x 0.85 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f47419850f437a8d9e78f06e1733c1fb144157bf39c66e6063e2989f8a3e6c71.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f47419850f437a8d9e78f06e1733c1fb144157bf39c66e6063e2989f8a3e6c71.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_3800_OEM_Installationsheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_3800_OEM_Installationsheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fd63cc2d69bf275eee3fcb11a5979c7ca4acb844cbfe9fa1e9979725847494c8.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fd63cc2d69bf275eee3fcb11a5979c7ca4acb844cbfe9fa1e9979725847494c8.pdf

• MOV based suppression circuitry provides optimum clamping
• Type 4 surge protected devices (SPD) evaluated for use in type 2 SPD applications
• Terminal block accepts 14 or 12 AWG conductor
