Leviton® extra heavy duty industrial grade series receptacles withstand the rigors of the harshest environments, such as those found in factories, schools and municipal buildings. These specification grade devices are the best choice where durability, safety and reliability are of utmost importance.

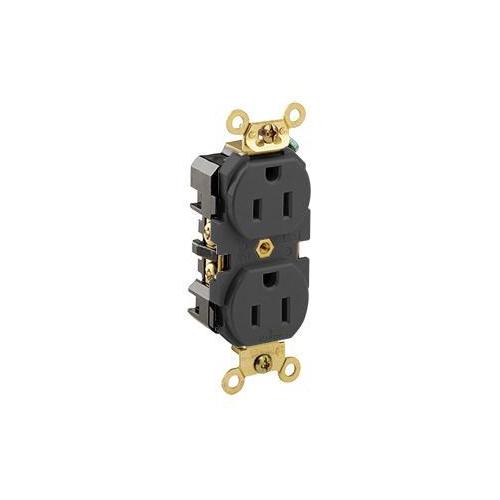

Leviton®, 5262-E, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Black, 46 in H x 1.53 in W x 1.11 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_54504-2I_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_54504-2I_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5015-T_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5262-E_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5262-E_RoHS.pdf

• Impact resistant thermoplastic nylon cover and body
• Four corner latches securely fasten face
• Large triple wipe, brass T contacts for superior contact and conductivity
• Back and side wiring options
• Brass terminal screws to reduce conductor oxidation
• Break-OFF tabs allow easy 2-circuit conversion
• Apron barrier to prevent accidental contact between terminal screw heads and metal box
• Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
• Wire lead receptacles for fast and easy installation
• Wallbox mounting
• Self-grounding, 8-hole feed-through
• 14 to 10 AWG wire terminal
• 2000 VAC minimum dielectric strength
• Maximum 30 deg C after 250 cycles OL at 200% rated current
• 1-phase
