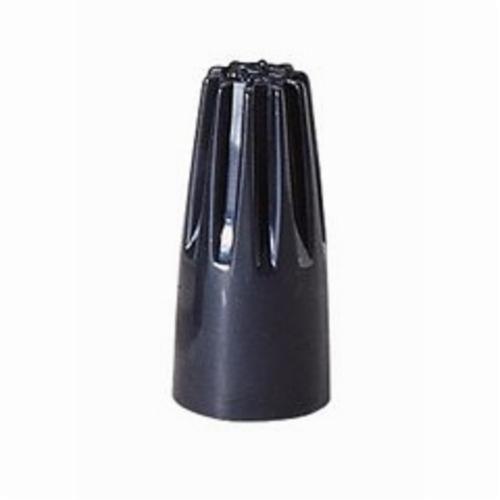

WIRE-NUT® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The WIRE-NUT® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

IDEAL® WIRE-NUT® Wire Connector, High Temperature, Series: 74B®, Positive Grip Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 12 AWG Wire, 600 VAC, Specifications: 1/2 in Solid/Stranded Wire Strip, 1 to 6 Conductors, Min 20 to 2 AWG, Max 14 to 3 AWG Combination Size, 302 deg F, Thermoplastic Polyester, Black, 1-1/16 in H x 31/64 in W Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_259_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_259_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_259_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_259_RoHS.pdf

• Welded one-piece spring/shell for added reliability
• Black, thermoplastic shell specially designed to withstand the extreme heat build-up commonly found in high-wattage light fixtures and signs
• Fixed, square wire spring creates its own threads-maintains a secure positive grip that will not relax over time
• No pre twisting required, positive grip design provides fast, easy installation
• Deep skirt helps protect against flash-over
• Reusable for easy circuit changes and additions
• For tough environmental conditions
• Ribbed shell provides sure grip
• Designed to withstand up to 150 deg C temperatures
• Refined range to handle all common applications; Excellent for fine stranded wire applications
• Positive grip shell that is comfortable to twist-on with fingers
