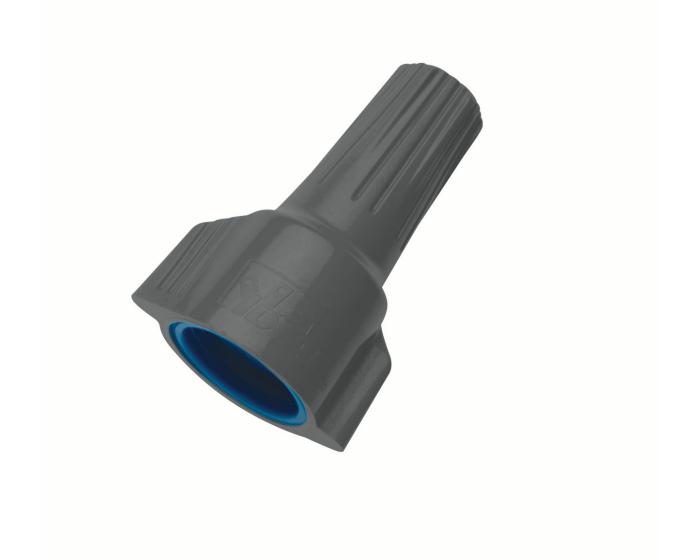

WEATHERPROOF® wire connectors are the perfect twist-on solution for connections that require protection from the elements. The swept wing design makes the connector easy and comfortable to apply, while the pre-filled, silicone based sealant protects against moisture and corrosion, eliminating the need for heat shrink or excessive taping.

IDEAL® WEATHERPROOF® Wire Connector, Series: 63® Series, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Copper Wire, 16 to 6 AWG Wire, 600 VAC, Specifications: 5/8 in Wire Strip, (3) 14 AWG Minimum, (2) 8 AWG, (1) 10 AWG Maximum Conductor Combination Size, 105 deg C, Thermoplastic Polyester, Blue/Gray, 0.81 in Dia x 1.0625 in W x 1.59375 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_1363_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_1363_RoHS.pdf

• 100% silicone based sealant protects against moisture and corrosion
• Easy to apply, pre-filled twist-on wire connectors
• Swept wing design is built for comfort and efficiency
• Eliminates the need for heat shrink or excessive taping
• Hexagonal shape allows connectors to be applied with standard nutdriver
• Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applications
• Tough, UL 94V-2 flame-retardant shell rated at 105 deg C (221 deg F)Models 61 and 63 approved for bonding and grounding applications
• Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements
