WEATHERPROOF® wire connectors are the perfect twist-on solution for connections that require protection from the elements. The swept wing design makes the connector easy and comfortable to apply, while the pre-filled, silicone based sealant protects against moisture and corrosion, eliminating the need for heat shrink or excessive taping.

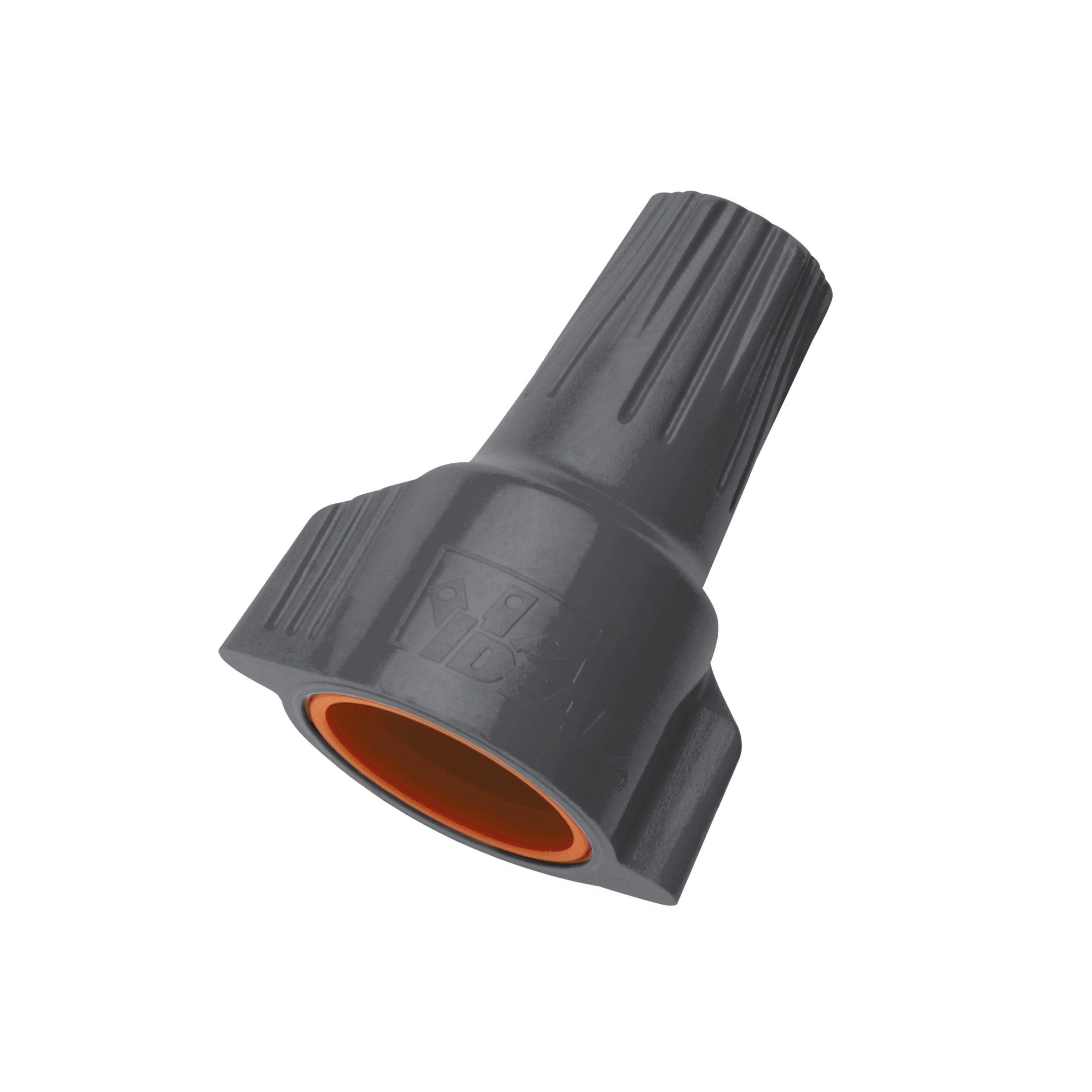

IDEAL® WEATHERPROOF® Wire Connector, Series: 61® Series, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 14 AWG Wire, 600 VAC, Specifications: 3/8 in Wire Strip, (2) 20 AWG Minimum, (2) 14 AWG Maximum Conductor Combination Size, 105 deg C, Thermoplastic Polyester, Gray, 0.49 in Dia x 0.65625 in W x 0.90625 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_1261J_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_1261J_RoHS.pdf

• 100% silicone based sealant protects against moisture and corrosion
• Easy to apply, pre-filled twist-on wire connectors
• Swept wing design is built for comfort and efficiency
• Eliminates the need for heat shrink or excessive taping
• Sealed Twist-On Wire Connector for use in damp/wet locations or above-grade applications
• Tough, UL 94V-2 flame-retardant shell rated at 105 deg C (221 deg F)Models 61 and 63 approved for bonding and grounding applications
• Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements
