B-Line PB2

Share Print

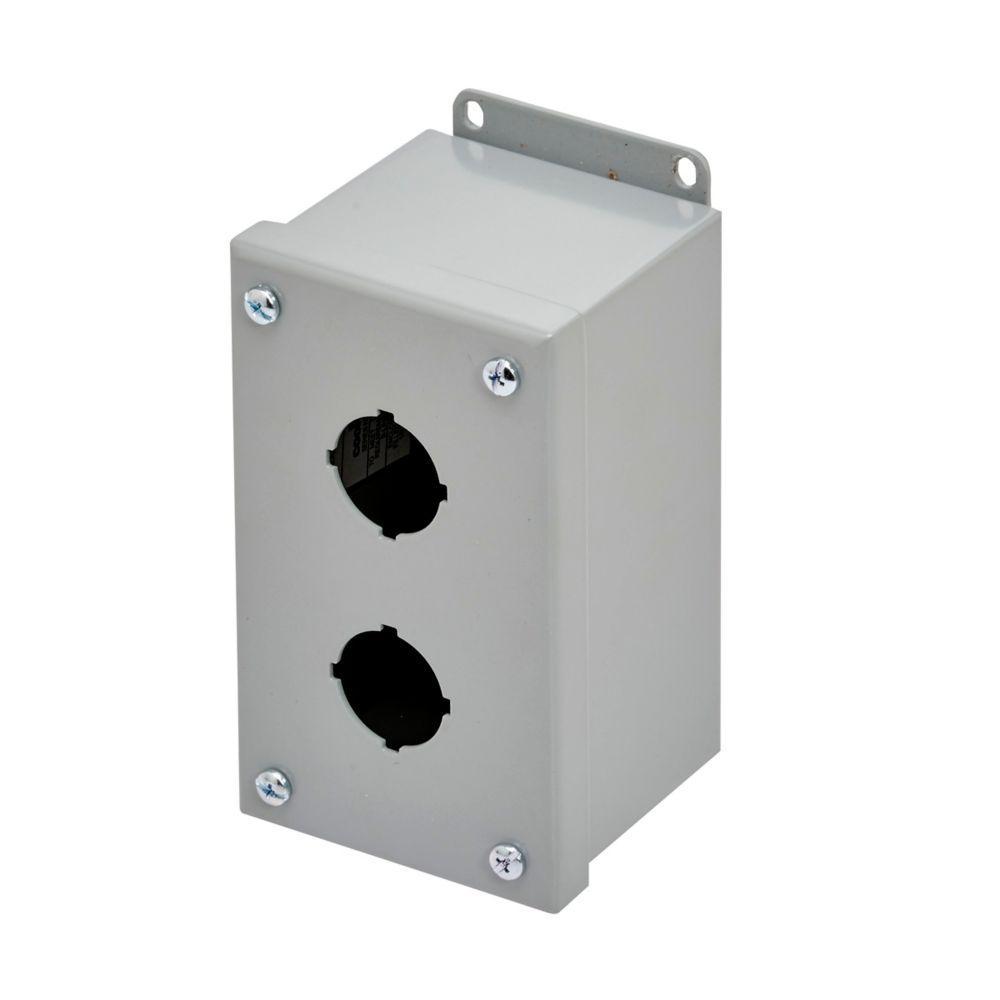

B-Line PB2 PB Series Standard Pushbutton Enclosure, 5-3/4 in L x 3-1/4 in W x 3 in D, (2) Outlets, NEMA 4X/12/13/IP65 NEMA Rating, Steel

  • MPN: PB2

  • IESPN: 48065

  • UPC: 782051700657

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
B-Line PB2

B-Line, PB2, Pushbutton Enclosure, Standard, Series: PB Series, 5-3/4 in Length, 3-1/4 in Width, 3 in Depth, NEMA 4X/12/13/IP65 NEMA Rating, Screw Cover, 2 Outlets, Feet/Wall Mounting, Steel, Polyester Powder Coated, Gray

Type      Standard
Series      PB Series
Length      5-3/4 in
Width      3-1/4 in
Depth      3 in
NEMA Rating      NEMA 4X/12/13/IP65
Cover Type      Screw
Lock      Screw
Number of Outlets      2
Mounting Type      Feet/Wall
Material      Steel
Finish      Polyester Powder Coated
Color      Gray
  • All continuous welded seams are finished smooth
  • Cover has concealed, detachable hinges which allow for quick removal and can be hinged on either side
  • Cover has a fixed, oil-resistant gasket
  • Weldnut in body of enclosure for grounding
  • Cover is pre-punched with standard 30.5 mm or miniature 22.5 mm 4-way pushbutton holes
  • External mounting feet are provided for secure wall mounting
  • 30.5 mm device hole
  • Enclosure and cover are fabricated from 14 ga steel
  • Cover is attached with captive screws which thread into sealed well nuts
