The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok® brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor need for fast, easy installation. Available in extra heavy duty hospital and industrial grades, and heavy duty commercial grade platforms.

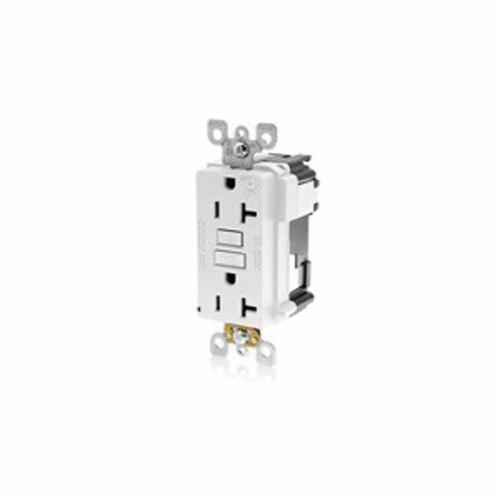

SmartlockPro® Lev-Lok® GFCI Receptacle, 1-Phase Duplex, 125 VAC, 20 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Modular Terminal, Thermoplastic, White, 4.21 in H x 1.7 in W x 1.589 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_442edf904d6379dfb43c810d3074ddadd888f110c91af1ab521a2e881f1bfabc.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_442edf904d6379dfb43c810d3074ddadd888f110c91af1ab521a2e881f1bfabc.pdf

• GFCI protects one duplex receptacle, no feed-through capability
• Constructed with impact-resistant nylon cover
• Large triple-wipe, brass T line contacts on 20 A for superior contact and conductivity
• The SmartLockPro® receptacle automatically tests the GFCI every time the RESET button is pushed, the GFCI will not reset if the GFCI circuit is not functioning properly
• Built-in end-of-life indication. If The SmartLockPro® receptacle can no longer provide GFCI protection, it will not reset and no power is supplied to the face
• Trip threshold meets or exceeds UL requirements for tripping time
• Lev-Lok GFCI receptacle to be installed only with Leviton® MSTWL wiring module
• MSTWL Wiring module includes three, 6inch long #12 AWG wire leads
• Wiring module locks and latches to the receptacle body providing double the connection security
• MSTWL wiring module shipped separately with protective label and factory-installed circuit ID label
• Wallbox mount
• 2000 VAC dielectric voltage
• UL 94V-2 flammability rated
• Steel strap
• No feed-through
• 12 AWG
