The ODS10 uses passive infrared (PIR) detection technology to monitor a room for occupancy through a segmented fresnel lens. This specialized lens divides the field-of-view into sensor zones. When a person passes into or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as there is an occupant moving through the sensor zones.

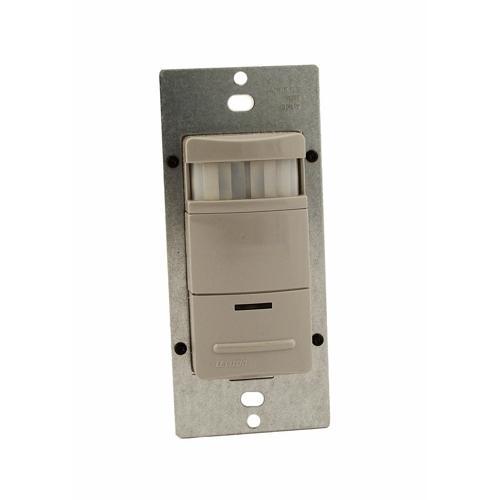

Leviton® Decora® Occupancy Sensor, 1-Pole, 120/230/277 VAC, 100/250 mW Power, Passive Infrared Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Manual On/Automatic Off Control Output, 0 to 50 deg C, Gray, 1.75 in W x 1.85 in D x 46 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_ODS10_IAW_Installation_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_ODS10_IAW_Installation_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3da696b64a7e86772a1235ba026358b5e8a7b53ac720ec7d17a117dd662b07f3.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_3da696b64a7e86772a1235ba026358b5e8a7b53ac720ec7d17a117dd662b07f3.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_ODC0P_W_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_ODC0P_W_Technical_Bulletin.pdf
• VIDEO LINK https://www.youtube.com/embed/vekEu7H-Tmo

• Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units
• Low profile design eliminates obtrusive scanning-device look
• Convenient pushbutton provides manual ON/Off light switching at any time
• Two dual element PIR sensors used to widen detection range
• Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
• Vandal-resistant PIR lens
• Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinders located on either side of the lens, no masking tape required
• Manual On/auto Off mode for installations where manual On switching is required but auto Off switching is still desired for CEC title T24 energy savings
• To comply with T24, red LED indicator light flashes when sensor detects motion to verify detection is active
• Time delay adjustment for delayed Off time settings of 30 sec (for walking test), 10, 20 and 30 min, allows customized adjustments to maximum energy savings
• Light sensor adjustable ambient light override ranges from approximately 20 to 5000+ LUX to prevent lights from turning On automatically during periods of ample natural light, increasing energy savings
• Light sensor enables the load hold Off feature once level has been set
• Vacancy confirmation when the time out expires and the lights turns Off, a 30 sec vacancy confirmation exists to turn the lights back ON
• False detection circuitry
• Presentation mode feature for slide or film presentations allows pushbuttons to turn lights Off and keep them Off while the room is occupied
• 1-unit can be used for 120 to 277 VAC lighting
• Compatible with both electronic and magnetic ballasts
• Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
• Exclusive Leviton® high inrush stability (HIS) circuitry, specifically designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
• No neutral design is optional for retrofit applications
