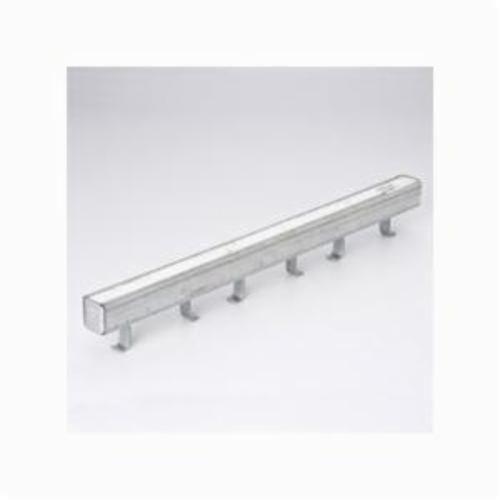

B-Line Channel Concrete Insert, Continuous, 120 in Length, 1-5/8 in Width, 1-5/8 in Depth, 12 ga Thickness, 2000 lb, For Use With: B22 Channel, Steel, Galvanized

• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_B22_I_120GLV_Data_Sheet.pdf

• Design load for B22-I-12 thru B22-I-240 is 2,000 lbs. (8.89 kN) per foot of concrete insert length with safety factor of 3 in 3000 psi concrete
• Loads concentrated within the last 2 in (50.8 mm) of concrete inserts 8 in (203.2 mm) and longer should not exceed 1,000 lbs (4.45kN)
• Concrete insert should be secured to the forms on 16 in (406.4 mm) to 24 in (609.6 mm) intervals
• B22-I continuous concrete inserts are made from B22 channel
• Use channel nuts designed for use in B22 channel
• B22-I concrete inserts are supplied with styrofoam fillers
• B3322 end caps are furnished with inserts through 8 in (203.2 mm) long, and B205 end caps are furnished with inserts 12 in (304.8 mm) and longer
