B-Line is a leading manufacturer and fabricator of metal products used in the support of pipe hangers and support equipment for industrial, commercial, utility and HVACR applications. B-Line pipe hangers and supports includes a wide variety of support products such as beam clamps, pipe hangers, pipe clamps, pipe rollers, pipe supports, concrete inserts and brackets.

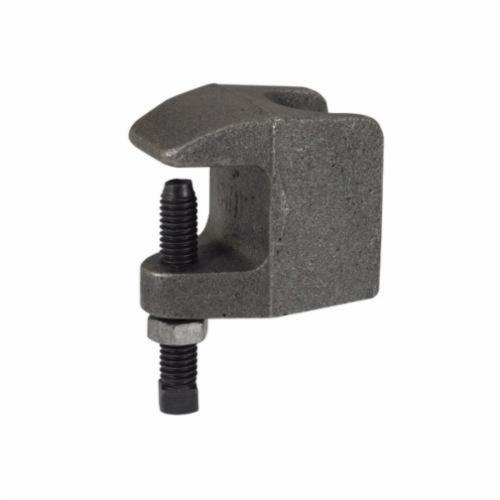

B-Line C-Clamp, 3/8-16 Rod, 3/4 in Flange Thickness, 610 lb, 4 in Pipe, Steel, Hot Dipped Galvanized, 1-5/8 in L x 7/8 in W x 2 in H

• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_B3033_1_2HDG_Catalog.pdf

• Recommended for hanging from steel beam where flange thickness does not exceed 3/4 in
• Beveled lip allows hanging from top flange where clearance is limited
• May be installed with the set screw in the up or down position
• Offset design permits unlimited rod adjustment by allowing the rod to be threaded completely through the clamp
• The rear window design permits inspection of thread engagement
• 610 lb (Setscrew up), 610 lb (Setscrew down)
• For top or bottom flange of the beam
• Cast Malleable steel
• Hot dipped galvanized/zinc plated finish
