Eaton's B-Line series JIC panel enclosures provide reliable environmental protection and are used to house electrical controls and instruments, but are also commonly used as industrial wiring, junction, pull, and termination boxes.

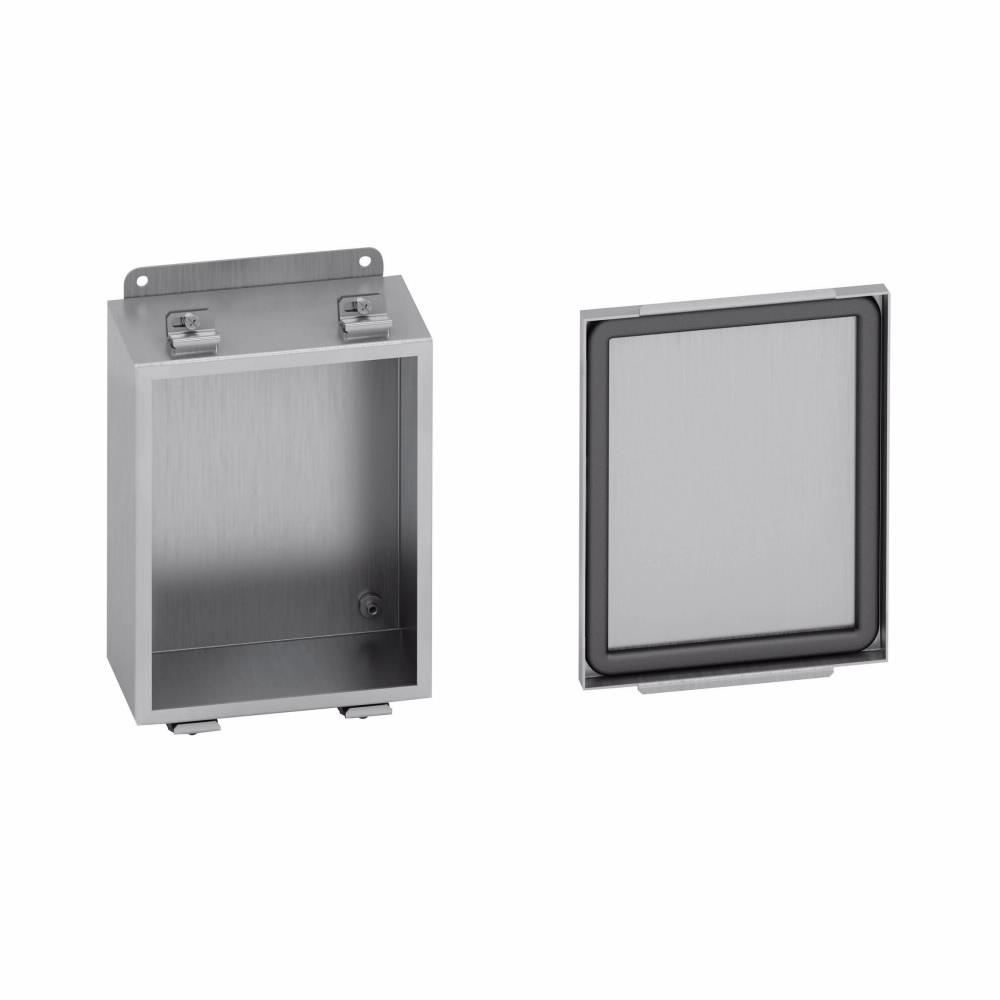

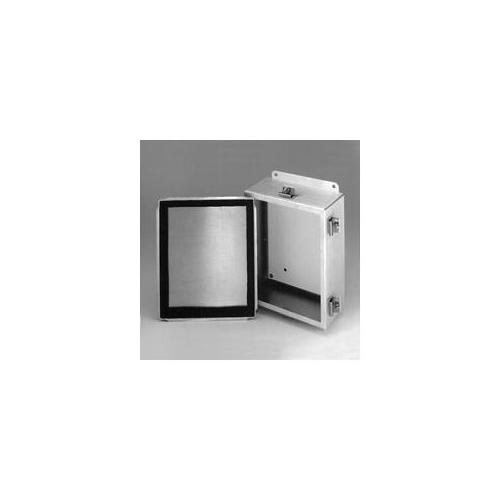

B-Line JIC Enclosure, 4 in Width, 3 in Depth, 6 in Height, NEMA 4X NEMA Rating, Lift-Off Cover, 2.87 in W x 4.87 in H Panel, Lock: Padlock Hasp, External Feet/Wall Mounting, Aluminum, Smooth Brushed, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf

• Enclosure and cover are fabricated from 14 ga, type 5052-H32 aluminum
• All continuous welded seams are finished smooth
• Cover is secured to the body with easy to operate stainless steel screw clamps mounted on all four sides
• Each door has a print pocket and padlock hasp with sealing hole provision
• Cover has a seamless poured in place gasket
• External mounting feet are provided for secure wall mounting
• Protects against corrosion, windblown dust and rain, splashing water and hose directed water
• Panel mount provisions, stainless door clamps
