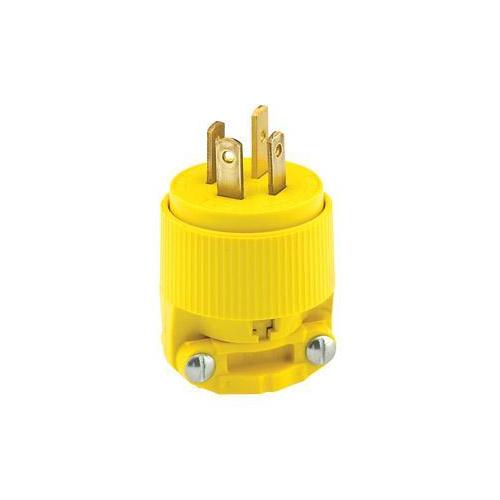

Leviton® 7251-C

Leviton® 7251-C 3-Phase Non-Grounding Straight Blade Plug, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Yellow

  • MPN: 7251-C

  • IESPN: 78775

  • UPC: 078477808740

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH
    • Availability: loading

    • Branch Availability
Leviton® 7251-C

Leviton® offers industrial, commercial and residential plugs and connectors for unlimited application settings. Plugs and connectors are provided in a range of ratings from 15 to 60 A, the product line includes straight blade and locking devices in all NEMA configurations, as well as locking devices in non-NEMA configurations. Versions include hospital Grade, isolated ground, WetGuard®, Dustguard®, Python™, power plugs, corrosion resistant plugs and connectors, power interrupting devices, midget devices and much more.

Leviton® 7251-C Straight Blade Plug, 3-Phase Non-Grounding, 120/208 VAC, 20 A, 2 hp, 4 Pole, 4 Wires, NEMA 18-20P NEMA Rating, Industrial Grade, 0.687 to 0.875 in Diameter Cord, -40 to 60 deg C, Nylon, Yellow

Type      3-Phase Non-Grounding
Voltage Rating      120/208 VAC
Amperage Rating      20 A
Horsepower      2 hp
Number of Poles      4
Number of Wires      4
NEMA Rating      NEMA 18-20P
Grade      Industrial
Cord Diameter      0.687 to 0.875 in
Temperature Rating      -40 to 60 deg C
Material      Nylon
Color      Yellow
  • Impact resistant thermoplastic nylon cover and body
  • Smooth face does not collect dirt
  • Four corner latches securely fasten face
  • Large, triple-wipe, brass T contacts for superior contact and conductivity
  • Back and side wiring options
  • Brass terminal screws to reduce conductor oxidation
  • Break-off tabs for easy 2-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
  • Wire lead receptacles for fast and easy installation
  • 14 to 16 AWG terminal accommodation
