Eaton's B-Line series JIC panel enclosures provide reliable environmental protection and are used to house electrical controls and instruments, but are also commonly used as industrial wiring, junction, pull, and termination boxes.

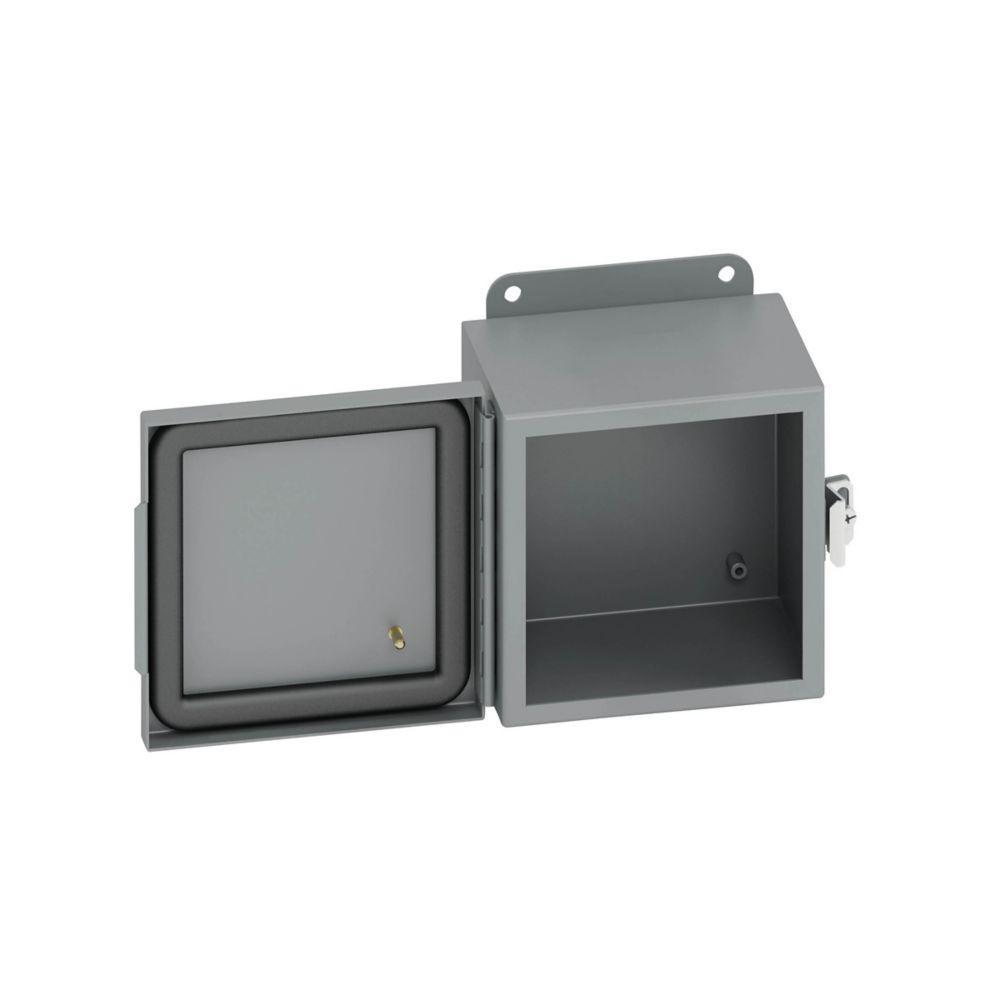

B-Line JIC Panel Enclosure, 1-Door, Series: Premier™, 8 in Width, 6 in Depth, 10 in Height, NEMA 4/IP66 NEMA Rating, Continuous Hinged Cover, 6.87 in W x 8.87 in H Panel, Lock: Screw Clamp, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated/Phosphate Undercoat, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/1086_SDFQRCC_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_1086-4CHC_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/B-Line_1086-4CHC_Specification_Sheet.pdf

• Enclosure and cover are fabricated from 16 ga steel
• All continuous welded seams are finished smooth
• Cover is secured to the body with a continuous hinge on one side and easy to operate stainless steel screw clamps mounted to the opposite side
• Stainless steel hinge pin
• Cover has a seamless poured in place gasket
• Ground stud provided on cover
• External mounting feet are provided for secure wall mounting
• Protects against windblown dust and rain, splashing water and hose directed water
• Continuous piano hinge with stainless steel pin and door clamp
