Crouse-Hinds series XJGD combination expansion/deflection couplings are used with rigid metal conduit and IMC to couple together two sections of conduit subject to movement due to thermal expansion and contraction. They are installed indoors or outdoors in long conduit runs to permit linear and axial movement and to accommodate angular and parallel misalignment. XJGDs maintain electrical continuity without the need for an external bonding jumper and clamps. XJGDs for rigid/IMC come standard with a hot dip galvanized finish for trade sizes 1-1/4""" and above for added corrosion protection against harsh environmental factors.

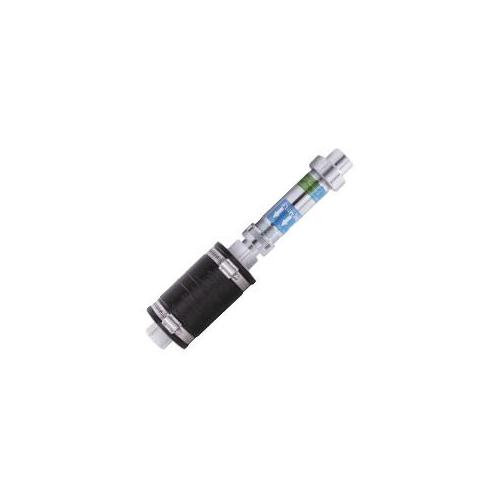

EATON Crouse-Hinds Conduit Expansion/Deflection Coupling, Series: XJGD, 1 in, For Use With: Rigid/IMC Conduit, Feraloy® Iron Alloy, Black/Brown, Electro-Galvanized, 3-15/16 in OD x 17-3/4 in L

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/XJGD74_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/XJGD74_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/XJGD74_Installation_Manual_02.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/XJGD74_Installation_Manual_02.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/XJG28_HDG_User_Manual_02.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/XJG28_HDG_User_Manual_02.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/XJGD34_Specification_Sheet_01.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/XJGD34_Specification_Sheet_01.pdf

• XJGD fittings are weatherproof and approved for use indoor or outdoor without an external bonding jumper
• XD component includes inner sleeve which maintains constant inside diameter in any position and provides a smooth insulated wire way for protection of wire insulation
• XD component contains a watertight flexible neoprene outer jacket which is corrosion-resistant and protects the grounding strap and the attachment points of the hubs
• XD component includes stainless steel jacket clamps for strength and corrosion resistance
• XJG component includes internal bonding springs and metallic bushings to create high integrity internal ground connection and eliminate need for external bonding jumpers and clamps
• NPT threads fit standard rigid conduit
• Patented design
• PTFE composite packing
• Vellum gasket
• Electro-galvanized phosphor bronze ground spring
• Black natural molded neoprene XD component outer jacket
• Natural stainless steel XD jacket clamps
• Brown natural molded plastic XD inner sleeve
• Braided tinned copper bonding strap
