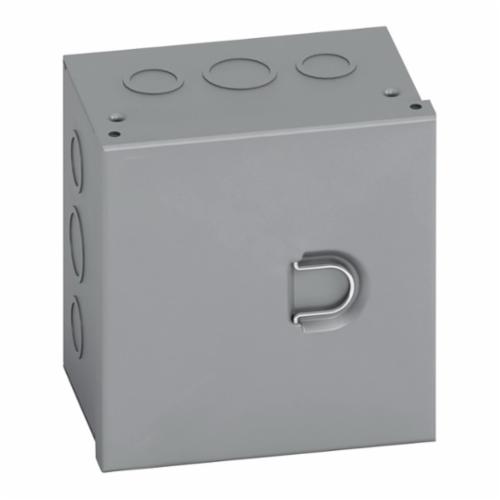

B-Line Junction Box, 6 in Length, 6 in Width, 4 in Depth, NEMA 1/IP30, Hinged Cover, Knockout Cable Entry, Steel, Acrylic Electro Coated, Gray

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_864_HC_Brochure.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520564047367.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11024/ID-BRO-v1-T1HingeCoverEnclosures.pdf
• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_242410_SC_NK_Catalog.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_10104_HC_NK_Specification_Sheet.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520599260414.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/11024/ID-SPE-v1-T1HingeCoverEnclosures.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/B_Line_242410_SC_NK_Warranty.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520545289334.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537666263090.pdf

• Enclosure and cover are fabricated from 16 ga steel
• Enclosure body has mounting holes on the back
• Removable cover is secured to the body with T-slot hinges on one side and a friction dimple catch on the opposite side
• Cover is furnished with a recessed pull ring for opening convenience
• #10-32 tapped hole provision for optional ground lug kit
• Hole provision for optional ground lug kit
